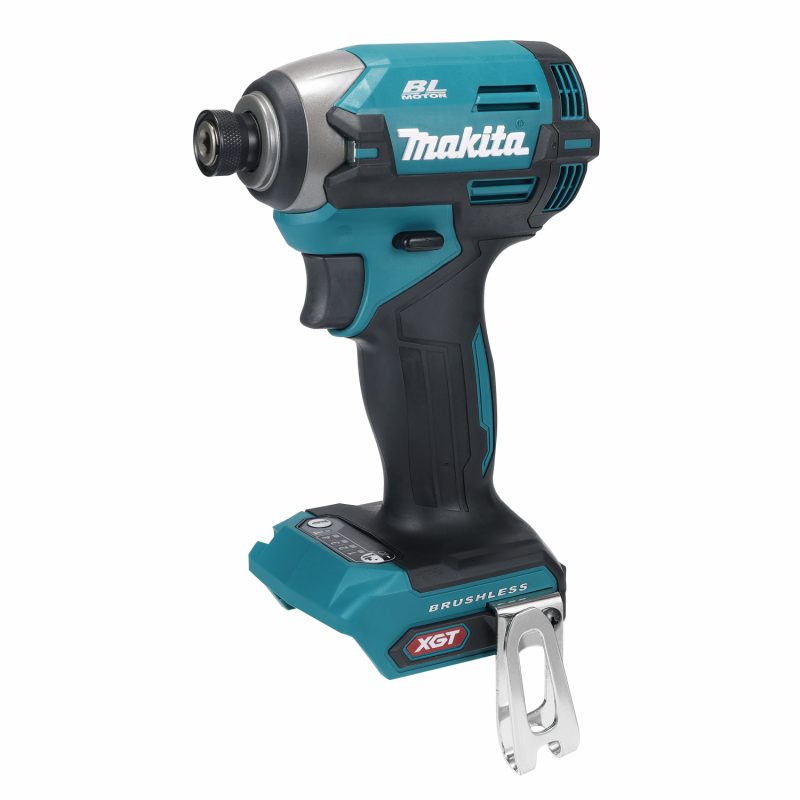

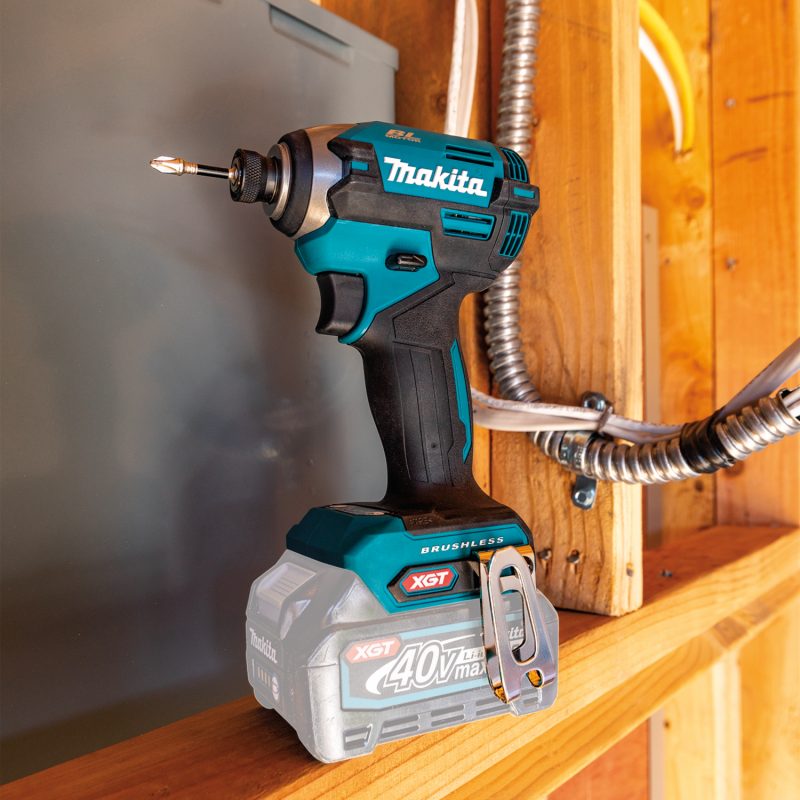

TD003GA201 CORDLESS IMPACT DRIVER (BL) (40VMAX)
Features
Model TD003G is a cordless impact driver powered by 40Vmax XGT Li-Ion battery,
and developed based on TD001G. It features combination of sufficient fastening performance
and high cost-competitiveness achieved by carefully selecting the functions.
The main features and benefits are:
• Aluminum hammer case + Black bumper
• Impact power selection:
∙ 4 modes (Max/ Hard/ Med./ Soft for bolt)
∙ 1 T-mode (for thin metal only)
( 1 Fast charger (DC40RC), 2 batteries 40V 2.0Ah (BL4020) )
| Capacity | Machine screw: M4 - M8 (5/32 - 5/16") Standard bolt: M5 - M16 (3/16 - 5/8") High strength bolt: M5 - M14 (3/16 - 9/16") Coarse thread (in length): 22 - 125 mm (7/8 - 4-7/8") Steel: 22 mm (7/8") Wood (Auger bit): 24 mm (15/16") |
| Dimensions (L X W X H) | 121 x 86 x 195 mm (4-3/4 x 3-3/8 x 7-5/8") |
| Fastening Torque | Hard / Med. / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.) |
| Impacts Per Minute (Ipm) | Max / Hard / Med. / Soft / T mode: 0 - 4,100 / 0 - 3,600 / 0 - 2,600 / 0 - 1,400 / N/A |
| Max Fastening Torque | 210 N·m (1,860 in.lbs.) |
| Max Output | 520 W |
| Net Weight | 1.7 - 2.9 kg (3.7 - 6.4 lbs.) |
| No Load Speed (Rpm) | Max / Hard / Med. / Soft / T mode: 0 - 3,700 / 0 - 3,200 / 0 - 2,100 / 0 - 1,100 / 0 - 2,400 |
| Sound Power Level | 106 dB(A) |
| Sound Pressure Level | 95 dB(A) |
| Vibration Level | 11.9 m/s² |
