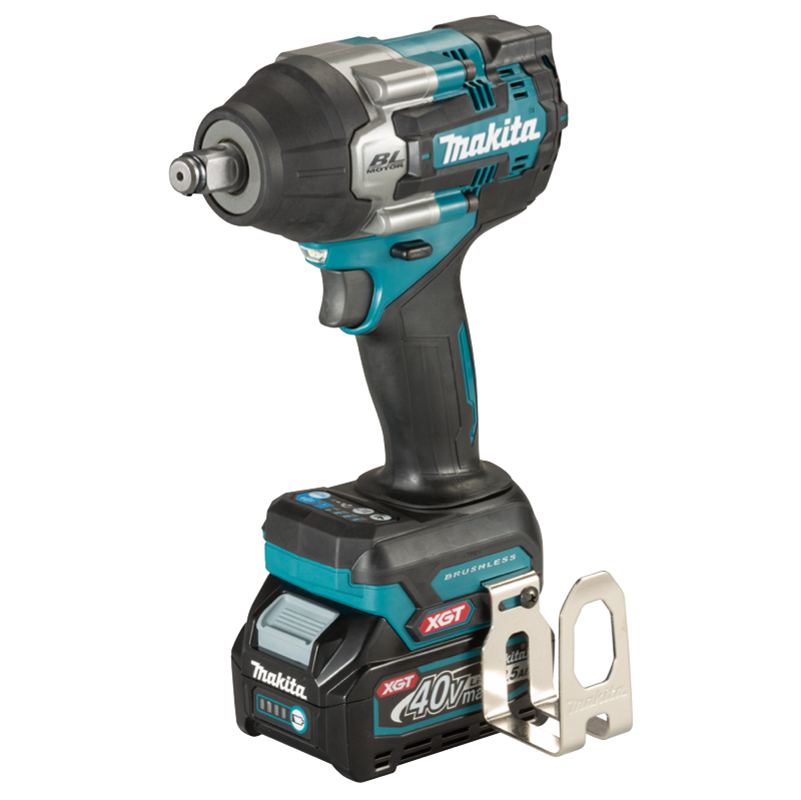

TW007GD202 CORDLESS IMPACT WRENCH(12.7MM/BL)(40V MAX)
Features
Models TW007G and TW008G are cordless impact wrenches powered by 40Vmax XGT Li-Ion battery and developed based on DTW700 and DTW701.
The main features and benefits are:
• Compact design, yet with high fastening torque of 760N∙m for 6 second fastening
• Electronic 4 stage impact power selection for added versatility
• 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
• Trigger switch with full speed mode allows for less hand and finger fatigue.
• The only difference between TW007G and TW008G is the style of socket retention:
∙ TW007G: C ring
∙ TW008G: Pin detent
( 2 2.5Ah (BL4025) batteries, 1 fast charger (DC40RA) )
| Dimensions (L X W X H) | w/ BL4020 / BL4025: 170 x 86 x 285 mm (6-11/16 x 3-3/8 x 11-1/4") w/ BL4050F: 170 x 86 x 312 mm (6-11/16 x 3-3/8 x 12-1/4") |
| Fastening Capacities | Standard Bolt: M10 - M24 (3/8 - 1") , High Strength Bolt (Grade 10.9): M10 - M16 (3/8 - 5/8") |
| Impacts Per Minute (Ipm) | Max / Hard / Mid / Soft: 0 - 2,900 / 2,700 / 1,900 / 1,200 |
| Max Fastening Torque | 760 N·m (560 ft·lbs.) |
| Net Weight | 2.7 - 3.3 kg (6.0 - 7.3 lbs.) |
| No Load Speed (Rpm) | Max / Hard / Mid / Soft: 0-2,300 / 1,900 / 1,200 / 600 |
| Sound Power Level | 108 dB(A) |
| Sound Pressure Level | 108 dB(A) |
| Square Drive | Max / Hard / Mid / Soft: 0-2,300 / 1,900 / 1,200 / 600 |
| Vibration Level | Impact tightening of fasteners of the maximum capacity of the tool: 19.7 m/s² |
