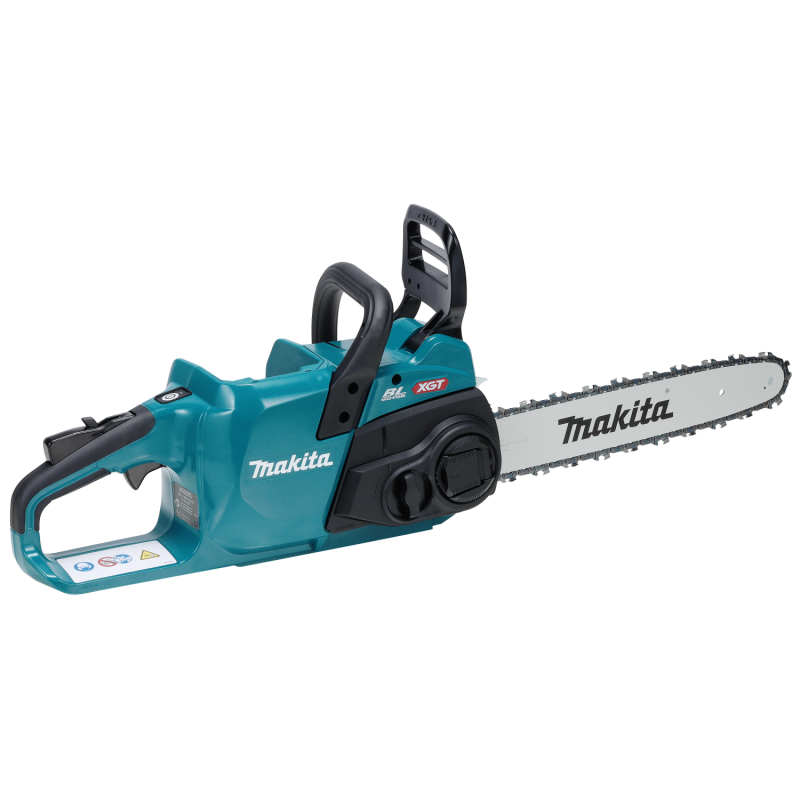

UC022GZ CORDLESS CHAIN SAW (350MM/80TXL/BL)(40V MAX)

UC022GZ

Features

40Vmax XGT BL Brushless Cordless 35 cm (14″) Chain Saw, Tool-less Tension Adjustment
Cutting performance and weight equivalent to or superior to 35mL class engine chainsaws
Excellent combination of high efficiency and lightweight design
• The current limiting threshold is increased through communication between the tool and battery, compared with the DUC353 series (LXT 18V x 2), to achieve the same or higher efficiency than 35mL class engine chain saws
• A single XGT battery is used, and when combined with the BL4050F battery, this model series is the lightest competitor in the 35mL class
New lock-off mechanism
By adding a lock lever to the lock-off lever, we have revised the automatic power-off time, enhancing work efficiency (Auto power-off time: 5 min.)
New toolless tension adjustment of saw chain
Easy-to-operate tension adjustment of saw chain by using large, easily visible dial
Excellent acceleration
• Improved response to trigger operation provides acceleration (from Trigger ON to full speed: approx 0.4 sec.)
• Thanks to this feature, the downtime between cuts is reduced, which is particularly beneficial during continuous and repetitive tasks like limbing
A feeling of tenacity in use
When the user presses the tool against the material with excessive force, the user can feel a decrease in rotation speed, making it easy to adjust the load on the cutting edge
Excellent Restartability (When Locked)
If the tool locks due to load, removing the load immediately allows the motor to start again without retriggering, making it possible to resume cutting operations
Highly visible felling line
There are black printed lines on the tool body to guide users in determining the fall direction of the tree, improving visibility during tree felling
WetGuard/ IPX4-compatible
High water-resistance allows users to operate the machine even if it is wet with water
Metal spike bumper firmly grips workpiece to provide more control, making cutting easier
Sprocket nose bar for enhanced cutting speed
Large oil filling port with view window allows operator to easily add and check oil level
Tool-less chain adjustment for convenient operation and maintenance
Equipped with mechanical brake and electric brake
Main power switch with auto power-off function for battery saving and avoiding unintentional start up
Adjustable automatic chain lubrication with large oil reservoir
Soft grip provides increased comfort
Variable speed control with trigger provides users with improved operability and workability
80TXL saw chain for smooth cutting and durability

( No battery, charger )

Information Booklet

Product Manual

Parts Diagram

Product Specifications
Standard Accessories

Chain Oil Tank Volume	200 mL (6.8 US oz)
Chain Pitch	0.325"
Chain Speed	0 - 25.5 m/s
Dimensions (L X W X H)	w/o Guide bar: 430 x 225 x 271 mm (17 x 8-7/8 x 10-5/8")
Net Weight	5.1 - 5.4 kg (11.2 - 11.9 lbs.)
Sound Power Level	101 dB(A)
Sound Pressure Level	93 dB(A)
