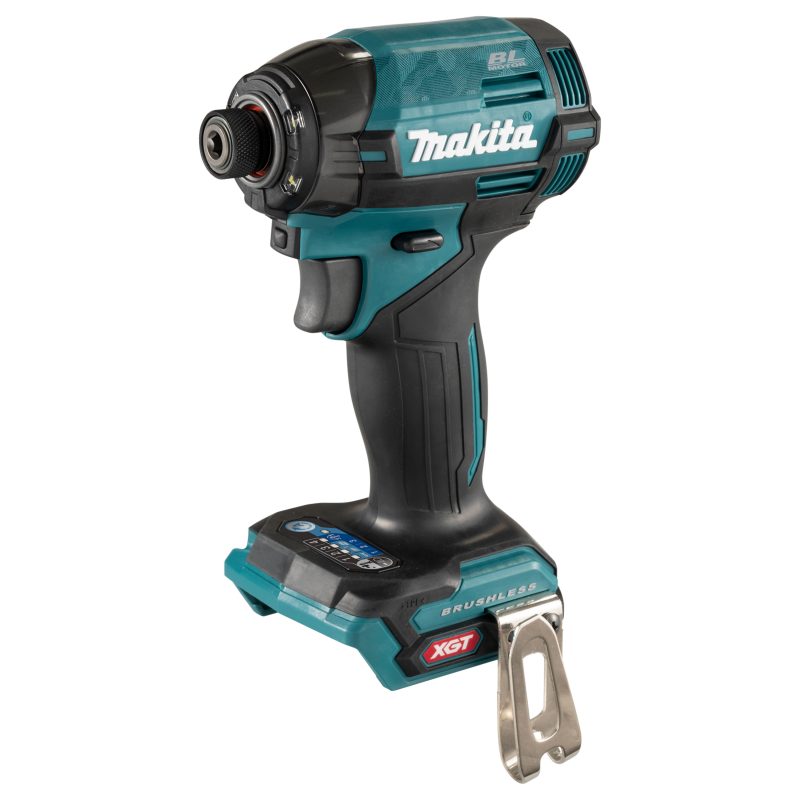

TD002GD202 CORDLESS IMPACT DRIVER(BL)(40V MAX)

TD002GD202

Features

( 2 battery 2.5 Ah (BL4025), fast charger (DC40RA) )

CapacityMachine screw: M4 - M8 (5/32 - 5/16") / Standard bolt: M5 - M16 (3/16 - 5/8") High strength bolt: M5 - M14 (3/16 - 9/16") Coarse thread (in length): 22 - 125 mm (7/8 - 4-7/8")
Dimensions (L X W X H)w/ BL4020 / BL4025: 119 x 86 x 247 mm (4-11/16 x 3-3/8 x 9-3/4")
Fastening TorqueHard / Med. / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.)
Hex Shank6.35 mm (1/4")
Impacts Per Minute (Ipm)Max / Hard / Med. / Soft / Wood / Bolt (1) / Bolt (2) / Bolt (3) / T (1) / T (2) mode: 0 - 4,600 / 0 - 3,600 / 0 - 2,600 / 0 - 1,400 / 0 - 4,600 / - / 0 - 4,600 / 0 - 4,600 / - / 0 - 2,600
Max Fastening Torque220 N·m (1,950 in.lbs.)
Net Weight1.7kg (BL4020) - 2.9 kg(BL4080F)
No Load Speed (Rpm)Max / Hard / Med. / Soft / Wood / Bolt (1) / Bolt (2) / Bolt (3) / T (1) / T (2) mode: 0 - 3,700 / 0 - 3,200 / 0 - 2,100 / 0 - 1,100 / 0 - 1,800 / 0 - 2,700 / 0 - 3,700 / 0 - 3,700 / 0 - 2,900 / 0 - 3,700
Sound Power Level105 dB(A)
Sound Pressure LevelSound pressure level
Vibration LevelImpact tightening of fasteners of the maximum capacity of the tool: 12.9 m/s²
Srew (+) M4X12 (266622-8), Hook (346317-0), Bit (+) 2-65 (784203-1)
