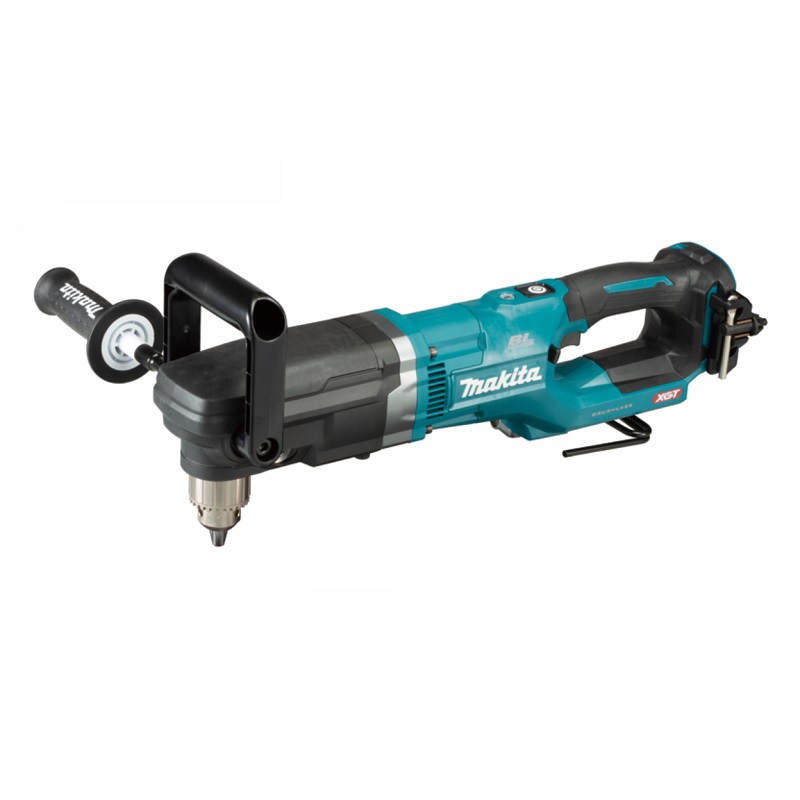

DA001GZ CORDLESS ANGLE DRILL(BL)(40V MAX)
Features
Model DA001G is large-size 13mm (1/2″) cordless angle drills powered by 40Vmax XGT Li-Ion battery and developed based on DDA460.
The main features and benefits are:
• High power similar to AC tool
• ADT: Automatic torque Drive Technology
• Mechanical 2-speed
• Lightweight design
• Brushless DC motor
• Auto power-off function
• Twin LED job light with preglow and afterglow functions
The difference between DA001G and DA002G is the bit holding mechanism:
DA001G: 13mm Keyed drill chuck
( No battery, changer )
| Capacity | Steel: 13 mm (1/2") Wood (Self-Feed Bit) Hi: 65 mm (2-9/16") / Lo: 118 mm (4-5/8") Wood (Hole Saw) Hi: 105 mm (4-1/8") / Lo: 159 mm (6-1/4") Wood (Auger-Bit): 50 mm (2") |
| Dimensions (L X W X H) | DA001G: w/ BL4040: 545 x 128 x 199 mm (21-1/2 x 5 x 7-7/8") w/ BL4020 / BL4025: 539 x 128 x 199 mm (21-1/4 x 5 x 7-7/8") |
| Hex Shank | 13 mm (1/2") |
| Max Fastening Torque | High: 55 N·m (487 in.lbs.) / Low: 136 N·m (1,210 in.lbs.) |
| Net Weight | DA001G: 5.3 - 6.2 kg (11.7 - 13.7 lbs.) |
| No Load Speed (Rpm) | High / Low: 0 - 1,500 / 0 - 400 |
| Sound Power Level | 95 dB(A) |
| Sound Pressure Level | 84 dB(A) |
| Vibration Level | Drilling into Metal: 2.5 m/s² or less |
