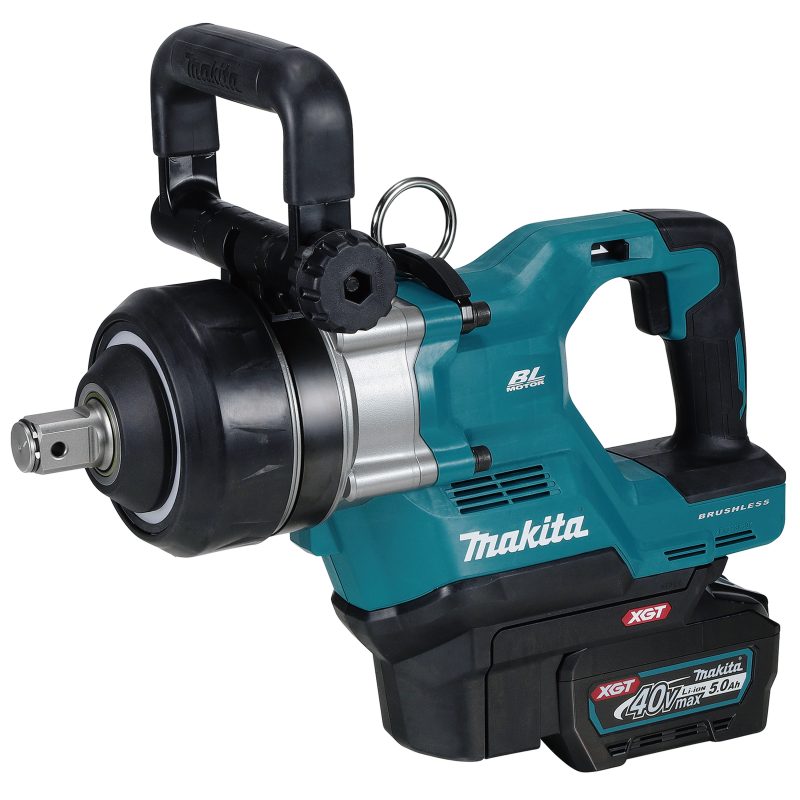

TW009GT201 CORDLESS IMPACT WRENCH (25.4MM/BL)(40VMAX)
Features
Models TW009G and TW010G are cordless 25.4mm (1″) square drive D-handle impact wrenches powered by a 40Vmax XGT Li-Ion battery.
These models provide an excellent combination of high torque and maneuverability, aiming to replace air impact wrenches for tightening large diameter bolts.
Model TW009G is equipped with a short anvil and Model TW010G is equipped with a long anvil.
The main features and benefits are:
• Auto-stop system available in both forward/reverse rotation modes
• Trigger switch with full speed mode
• Ring illumination LED (allowing for use as a work light in Light mode)
• XPT (eXtreme Protection Technology)
• Sockets are available as new accessories
( Fast Charger DC40RA, 2 Batteries 5.0Ah BL4050F )
| Dimensions (L X W X H) | w/ BL4050F: 570 x 135 x 297 mm (22-1/2 x 5-5/16 x 11-3/4") |
| Fastening Capacities | Standard bolt: M27 - M45 (1-1/8 - 1-7/8") High strength bolt: M20 - M33 (3/4 - 1-3/8") |
| Fastening Torque | Max/ Hard / Med. / Soft: 2,850 /1,600 / 1,000 / 600 N·m (2,100 /1,180 / 740 / 440 ft.lbs.) |
| Impacts Per Minute (Ipm) | Max / Hard / Med. / Soft: 0 - 1,750 / 0 - 1,500 / 0 - 1,300 / 0 - 1,200 |
| Max Fastening Torque | 3,150 N·m (2,323 ft.lbs.) |
| Net Weight | 11.8 - 12.8 kg (26.0 - 28.2 lbs.) |
| No Load Speed (Rpm) | Max / Hard / Med. / Soft: 0 - 1,200 / 0 - 850 / 0 - 700 / 0 - 600 minˉ¹ |
| Sound Power Level | 111 dB(A) |
| Sound Pressure Level | 103 dB(A) |
| Square Drive | 25.4 mm (1") |
| Vibration Level | 33.4 m/s² |
