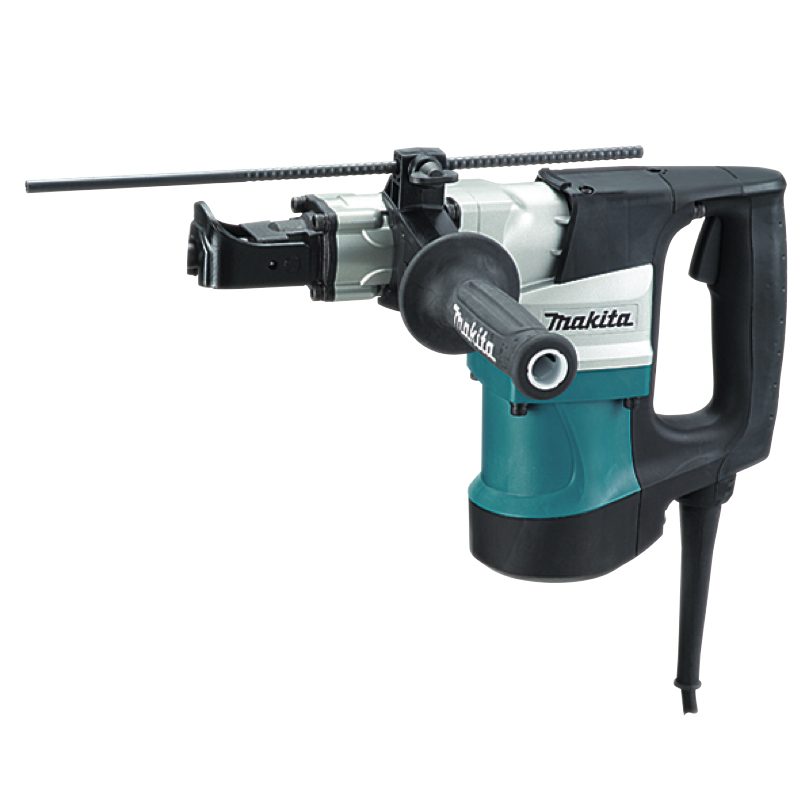

HR3530 ROTARY HAMMER(17MM HEX SHANK/35MM)
Features
Model HR3530 has been developed as a successor model of HR3520, compact and lightweight design , but with high drilling/chipping performance.
See next page for detailed information on benefits.
( AC tools )
| Capacity | Concrete (w/ TCT Bit): 35 mm (1-3/8") Concrete (w/ Core Bit): 105 mm (4-1/8") Core Bit: 105 mm (4-1/8") Masonry: 35 mm (1-3/8") |
| Continuous Rating Input | 1,010W |
| Dimensions (L X W X H) | 374 x 100 x 243 mm (14-3/4 x 3-15/16 x 9-9/16") |
| Impact Energy | 6.2J |
| Net Weight | 5.8 kg (12.8 lbs.) |
| Sound Power Level | 102 dB(A) |
| Sound Pressure Level | 91 dB(A) |
| Vibration Level | Chiselling: 12.5 m/s² Hammer Drilling into Concrete: 19.5 m/s² |
