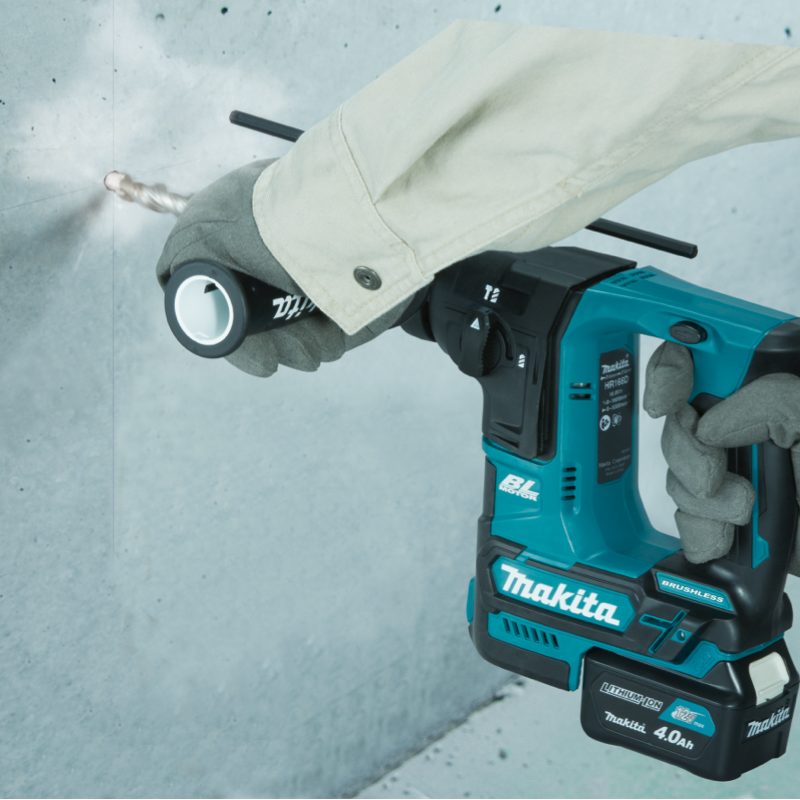

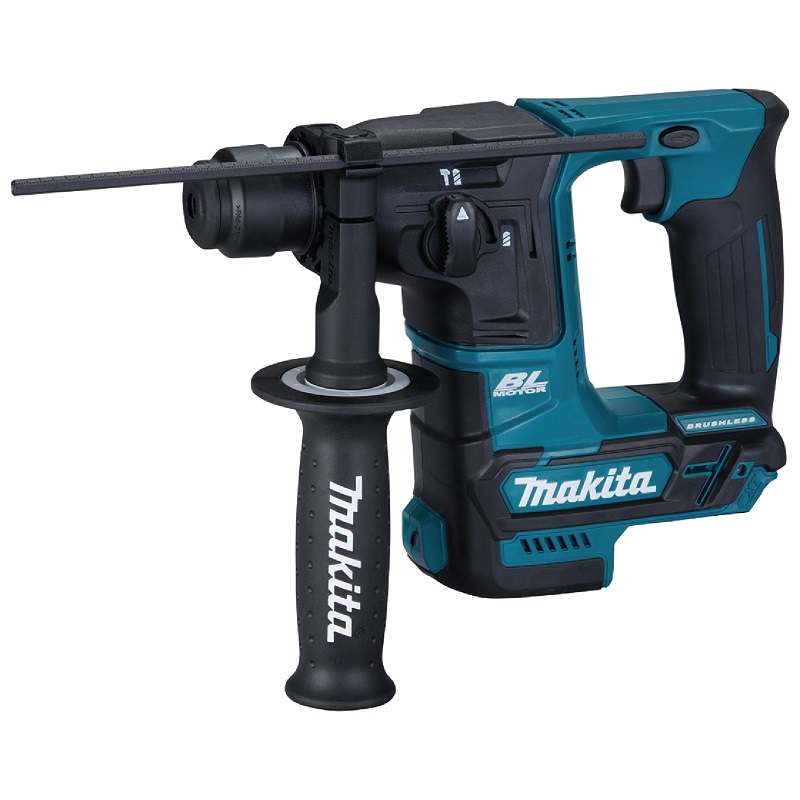

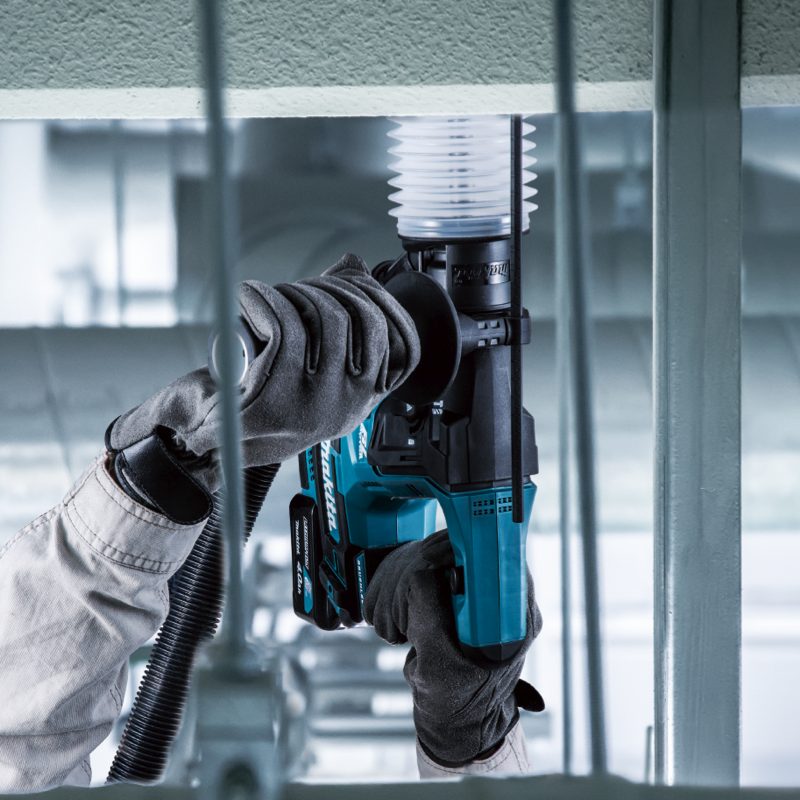

HR166DZ CORDLESS ROTARY HAMMER(SDS-PLUS SHANK/16MM//BL)(12V MAX)
Features
Model HR166D is a 16mm (5/8″) Cordless rotary hammer powered by
12V max slide Li-ion battery.
The main features and benefits are:
• High-efficiency drilling
• Vibration absorbing housing
• Compact and lightweight design
• One touch sliding chuck adapted for SDS-PLUS bit
• 2 mode operation;
– Rotation only
– Rotation + Hammering.
( No battery, charger )
| Capacity | Concrete: 16 mm (5/8") Steel: 10 mm (3/8") Wood: 13 mm (1/2") |
| Dimensions (L X W X H) | 250x74x187mm (9-7/8"x2-15/16"x7-3/8") |
| Impact Energy | EPTA-Procedure 05/2009: 1.1 J |
| Impacts Per Minute (Ipm) | 0 - 4,800 |
| Net Weight | BL1016: 1.8 kg (4.0lbs.) BL1041B: 2.0 kg (4.4 lbs.) |
| No Load Speed (Rpm) | 0 - 680 |
| Sound Power Level | 97 dB(A) |
| Sound Pressure Level | 86 dB(A) |
| Vibration Level | Hammer Drilling Into Concrete: 7.5 m/s² Drilling Into Metal: 2.5 m/s² or less |
| Oscillation angle | field_60d9572b1dfd9 |
