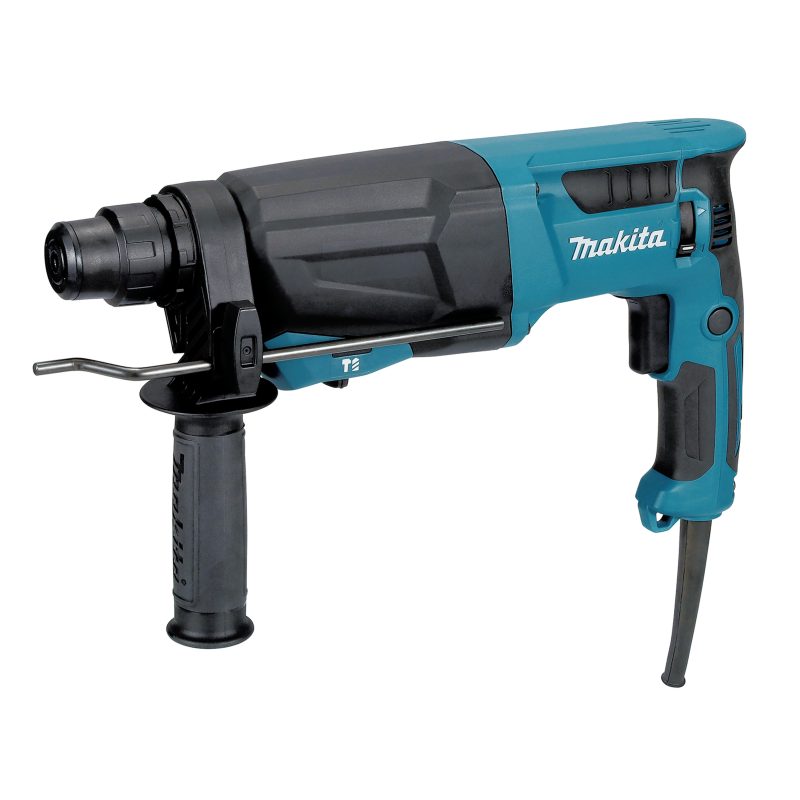

HR2670X5 COMBINATION HAMMER(SDS-PLUS SHANK/26MM)
HR2670X5
Features
Models HR2670 and HR2670FT are 26mm (1″) SDS-PLUS Combination Hammers.
We have achieved both increased power and durability by redesigning
the internal structure while enhancing cost competitiveness by modifying the motor specifications from model HR2470.
Both models are equipped with three operation modes (Rotation only / Hammering only / Rotation + hammering).
The main difference between the two models is the chuck type:
• HR2670: Normal chuck
• HR2670FT: Quick change chuck
( AC tools )
| Capacity | Concrete (w/ TCT bit): 26 mm Concrete (w/ Core bit): 68 mm Concrete (w/ Diamond core bit): 80 mm Steel: 13 mm Wood: 32 mm |
| Continuous Rating Input | 800 W |
| Dimensions (L X W X H) | 362 x 77 x 207 mm |
| Impact Energy | 3.0 J |
| Impacts Per Minute (Ipm) | 0-4,500 minˉ1 |
| Net Weight | 2.78 kg (tool only) |
| No Load Speed (Rpm) | 0-1,500 minˉ1 |
| Sound Power Level | 102 dB(A) |
| Sound Pressure Level | 94 dB(A) |
| Vibration Level | Hammer drilling into concrete: 16.1 m/s2 Chiselling: 14.2 m/s2 |
Grip assembly (122G56-6), depth gauge (321144-6), bull point 250 (D-08713), drill chuck set (194041-7), sds-plus bit set (5pcs/set) (D-17784).
