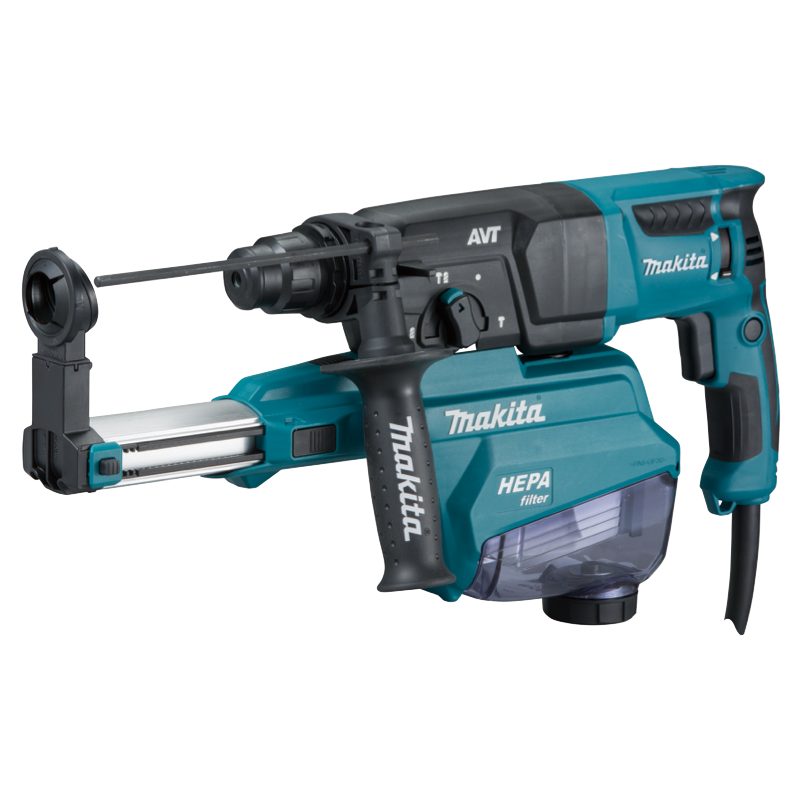

HR2653 COMBINATION HAMMER WITH SELF DUST COLLECTION(SDS-PLUS SHANK/26MM)
HR2653
Features
The HR2653 series is a multi-purpose drill developed on top of the existing HR2651
series by adding a dust extraction system and a filter cleaning mechanism.
Key features and benefits are:
• Filter cleaning mechanism for more efficient drilling
• Dust collector port with 190mm pipe allows longer drill bits to be attached.
• The HEPA filter removes particles with an efficiency rate of 99.75%.
• Secure connection between dust container and dust collector to prevent dust leakage.
• Transparent dust container to easily check the amount of dust collected
• Easy dust removal for convenient dust handling and cleaning( AC tools )
| Blows Per Minute (Bpm) | 0 - 4,600 |
| Capacity | Our experimental conditions: 2.9 J Concrete : 26 mm (1") Core Bit: 68 mm (2-11/16") Diamond Core Bit (Dry Type): 80 mm (3-1/8") Steel : 13 mm (1/2") Wood : 32 mm (1-1/4") |
| Continuous Rating Input | 800W |
| Dimensions (L X W X H) | 604x89x260 mm (23-3/4"x3-1/2"x10-1/4") |
| Impact Energy | EPTA-Procedure 05/2009 : 2.2 J |
| Net Weight | 3.1 - 4.3 kg (6.9 - 9.6 lbs.) |
| No Load Speed (Rpm) | 0 - 1,200 |
| Power Supply Cord | 2.5 m (8.2 ft.) |
| Sound Power Level | 103 dB(A) |
| Sound Pressure Level | 92 dB(A) |
| Vibration Level | Hammer Drilling into Concrete : 11.5 m/s² Chiselling Funtion w/ Side Grip: 9.0 m/s² Drilling Into Metal : 2.5 m/s² |
| Oscillation angle | field_60d9572b1dfd9 |
Side Grip (158057-6), Depth Gauge (324219-0), Sealing Cap (424474-5).
