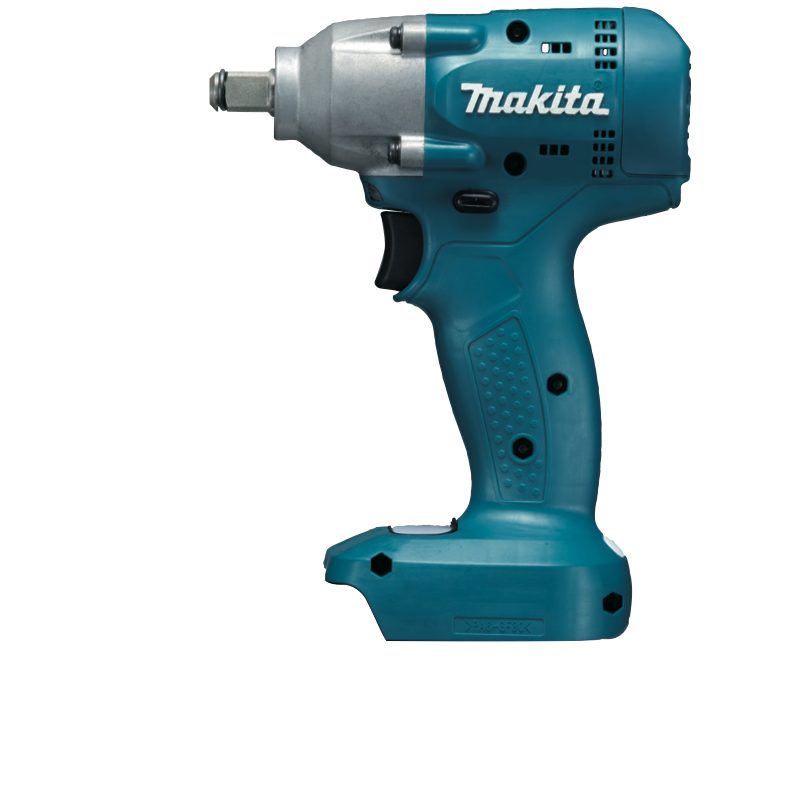

DTW074Z CORDLESS IMPACT WRENCH(9.5MM)(14.4V)

Home > PLATFORM > Cordless Tools For Industry > Impact Wrench > DTW074Z CORDLESS IMPACT WRENCH(9.5MM)(14.4V)

DTW074Z CORDLESS IMPACT WRENCH(9.5MM)(14.4V)

DTW074Z

Features

DTW074 cordless impact wrench for manufacturing industry as the successors of BTW072 series models.
Their main features are:
• Extra compact design with a short overall length of 144mm (5-5/8″)*1
• Powered by our new 14.4V Li-ion batteries with battery fuel gauge: BL1415NA (1.5Ah)/ BL1415NP (1.5Ah)/ BL1430AP (3.0Ah)
• Automatic impact stop system to avoid under-tightening and over-tightening
• Torque stabilization system to stabilize the torque of each fastening
• Automatic battery shut-off system to avoid incomplete fastenings

( No battery, charger )

Product Manual

Parts Diagram

Product Specifications

Capacity	Standard bolt: M5 - M12 (3/16 - 1/2"), High tensile bolt: M5 - M10 (3/16 - 3/8")
Dimensions (L X W X H)	with 1.5Ah Li-ion battery BL1415NA: 144 (5-5/8) x 74 (2-15/16) x 216 (8-1/2)
Driving Shank (Square)	9.5mm (3/8")
Fastening Torque	65N.m (575 in.lbs)
Impacts Per Minute (Ipm)	0 - 3,500
Net Weight	1.1 - 1.3 kg (2.4 - 2.9 lbs)
No Load Speed (Rpm)	0 - 2,500
Oscillation angle	field_60d9572b1dfd9
