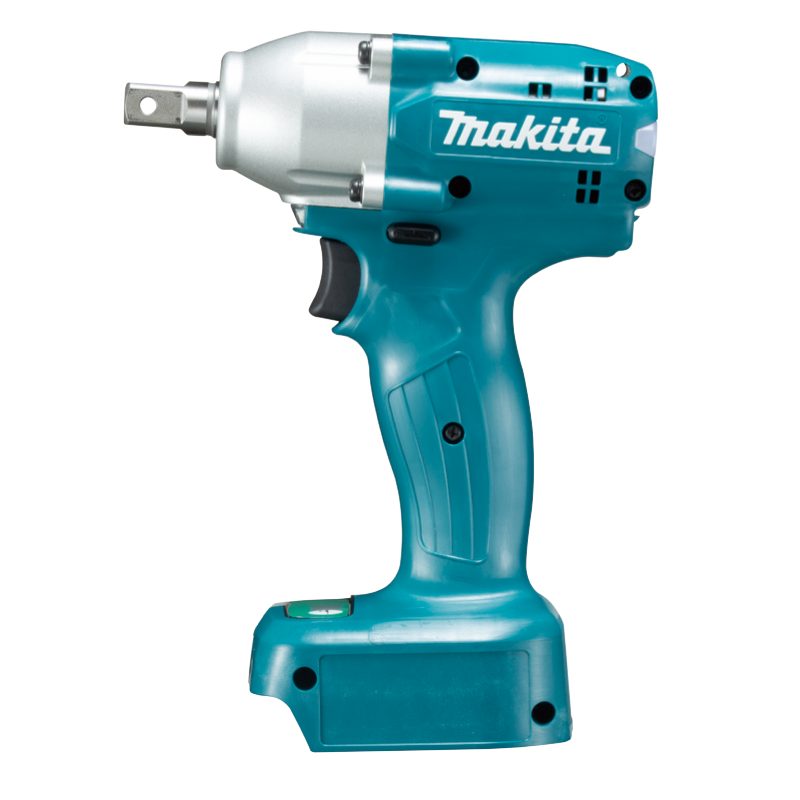

DTWA190Z CORDLESS IMPACT WRENCH(12.7MM/BL)(14.4V)
Features
Model DTWA190 is cordless impact wrenche powered by 14.4V Li-Ion battery and developed for manufacturing industry as the successors of DTW074 series models.
Main features and benefits are:
・ With BL motor and more smart functions
・ While Herutu’s Poka-yoke (error-proofing) module has to be externally attached to the current models, it can be embedded into DTDA040 series models, allowing for higher maneuverability.
・ ID cover located on the rear for easy model identification by color.
DTWA190 (185 N∙m class model): Green
( No battery, charger )
| Capacity | Standard bolt: M8 - M16 (5/16 - 5/8"), High strength bolt: M8 - M14 (5/16 - 9/16") |
| Dimensions (L X W X H) | With Battery BL1415/N/NA: 158 (6-1/4) x 74 (2-15/16) x 239 (9-3/8) |
| Driving Shank (Square) | 12.7mm (1/2") |
| Impacts Per Minute (Ipm) | 0 - 3,000 |
| Max Fastening Torque | 185 N.m (1640 in.lbs) |
| Net Weight | 1.3 - 1.6 kg (2.9 - 3.5 lbs) |
| No Load Speed (Rpm) | 0 - 2,600 |
