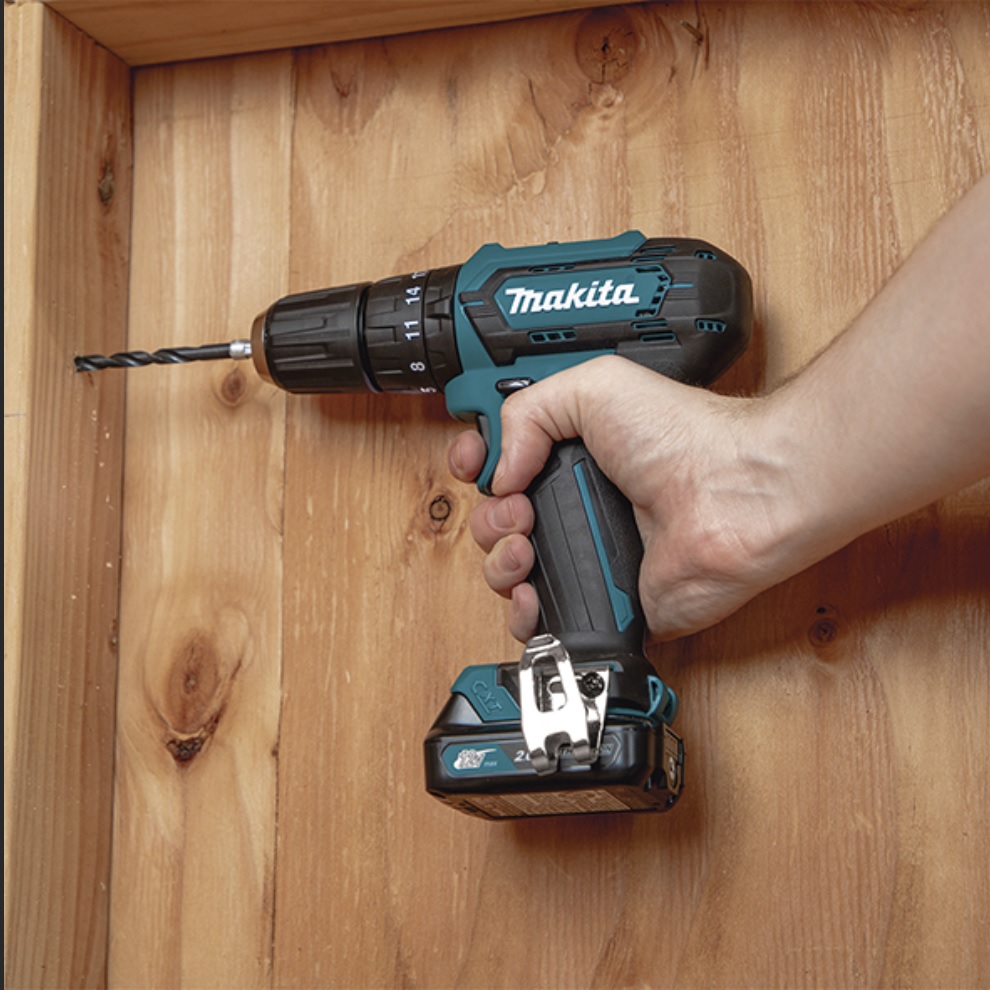

HP333DZ CORDLESS HAMMER DRIVER DRILL(12V MAX)
Features
Model HP333D is a Cordless hammer driver drill powered by 12V max slide Li-ion battery and developed based on HP331D.
Main features are:
• Enhanced Anvil holder rigidity (reduction of bit wobbling).
• Compact design with new Gear assembly.
• 10mm single sleeve Drill chuck.
( No battery, charger )
| Capacity | Steel / Wood / Masonry : 10 / 21 / 8 mm (3/8" / 13/16" / 5/16") |
| Chuck Capacity | (3/8" / 13/16" / 5/16") 0.8 - 10 mm (1/32 - 3/8") |
| Dimensions (L X W X H) | w/ BL1016/BL1021B : 193x66x212 mm (7-5/8"x2-5/8"x8-3/8") w/ BL1041B : 193x66x229 mm (7-5/8"x2-5/8"x9") |
| Impacts Per Minute (Ipm) | High / Low : 0 - 25,500 / 0 - 6,750 |
| Max Fastening Torque | Hard / Soft : 30 / 14 N·m (270 / 130 in.lbs.) |
| Max Lock Torque | 28 N·m (250 in.lbs.) |
| Max Output | 170 W |
| Net Weight | 1.1 - 1.3 kg (2.4 - 2.9 lbs.) |
| No Load Speed (Rpm) | High / Low : 0 - 1,700 / 0 - 450 |
| Sound Power Level | 93 dB(A) |
| Sound Pressure Level | 82 dB(A) |
| Vibration Level | Impact Drilling into Concrete : 13.0 m/s² Drilling into Metal : 2.5 m/s² or less |
