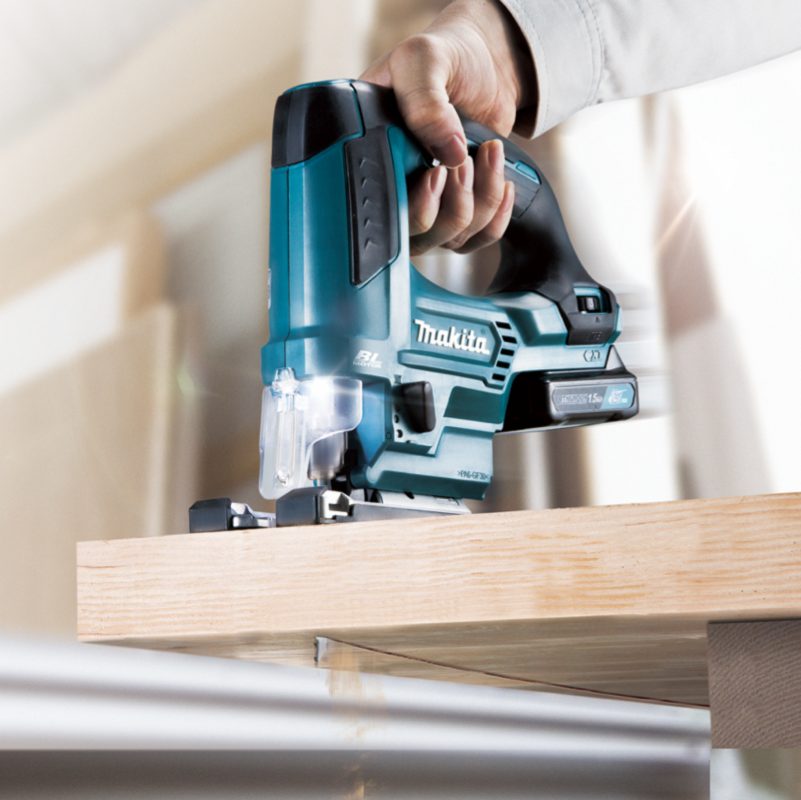

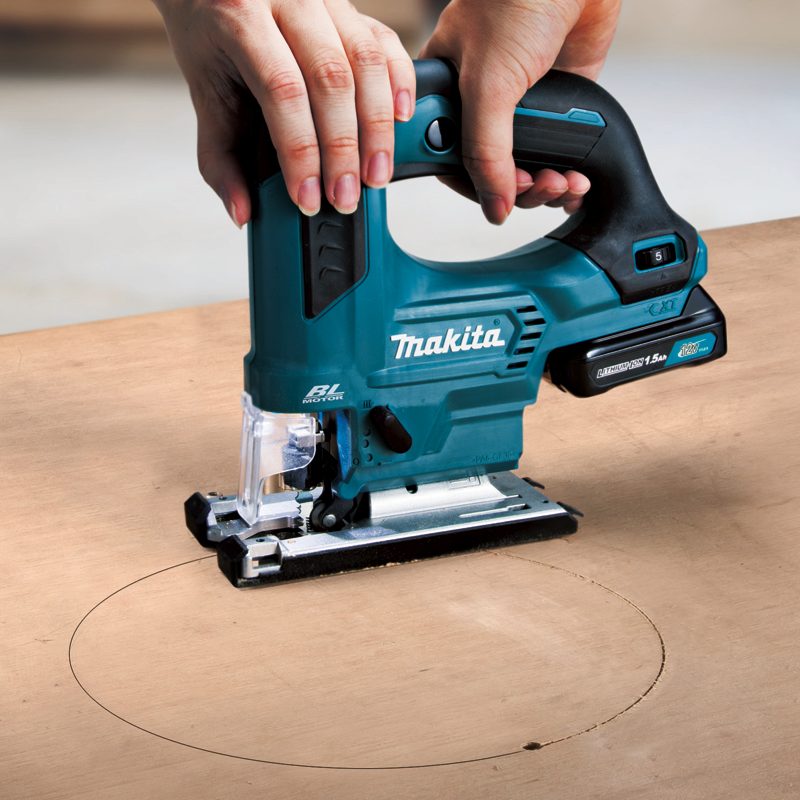

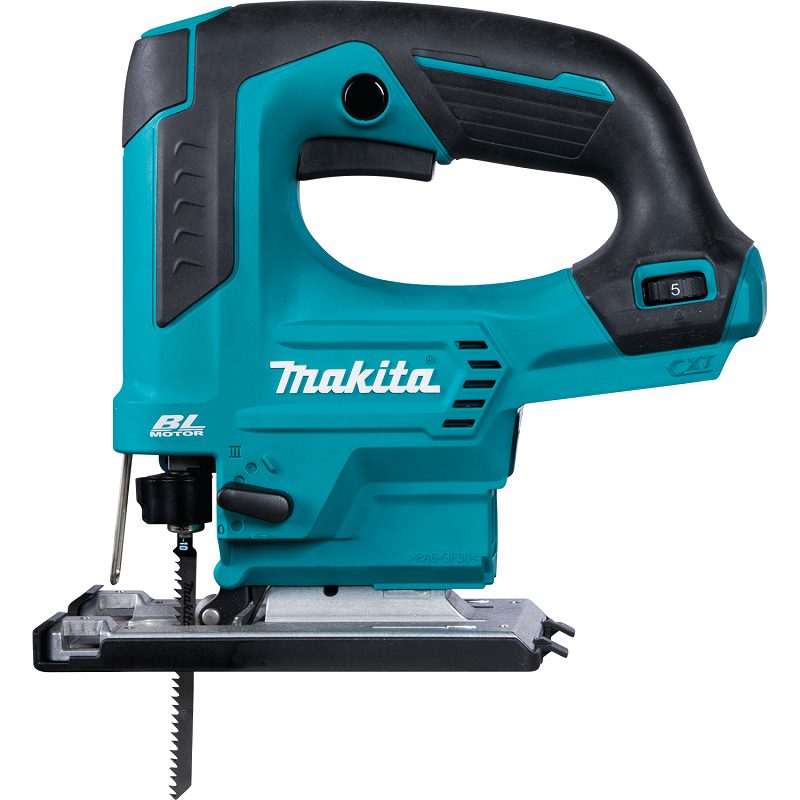

JV103DZ CORDLESS JIG SAW(BL)
Features
Model JV103D is a Cordless top handle jig saw powered by 12V max CXT slide Li-ion battery.
The main features and benefits are:
BL motor provides up to 200% faster cutting than JV101D
Toolless blade clamp for easy blade change
Disabling soft no-load rotation function in operator’s preference
( No battery, charger )
| Dimensions (L X W X H) | 237x76x206 mm (9-3/8"x3"x8-1/8") |
| Length Of Stroke | 23 mm (7/8") |
| Max Cutting Capacity | Wood / Aluminum / Mild Steel: 90 / 20 / 10 mm (3-1/2" / 13/16" / 3/8") |
| Net Weight | 1.9 - 2.0 kg (4.1- 4.4 lbs.) |
| Sound Power Level | 96 dB(A) |
| Sound Pressure Level | 85 dB(A) |
| Strokes Per Minute | 23 mm (7/8") 800 - 3,000 |
| Vibration Level | Cutting Boards : JV103D : 8.5 m/s² ; Cutting Sheet Metal : JV103D : 6.0 m/s² |
| Oscillation angle | field_60d9572b1dfd9 |
