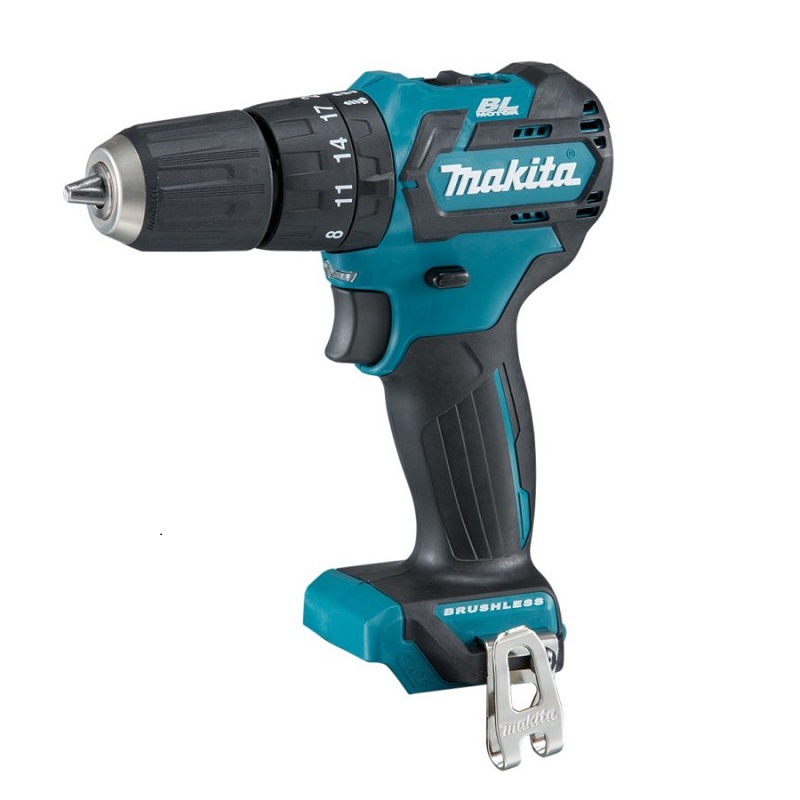

HP332DZ CORDLESS HAMMER DRIVER DRILL(BL)(12V MAX)
Features
Model HP332D is a Cordless hammer driver drill powered by 10.8V (12Vmax) slide Li-ion battery.
The main features and benefits are:
• More compact and more work amount compared with the current model HP330D thanks to the newly developed brushless motor and newly developed 10.8V slide Li-ion battery.
• Best possible ergonomic handle for drilling/driving applications.
( No battery, charger )
| Capacity | Adjustable Circle: 56 mm (2-3/16") Flat Bit: 27 mm (1-1/16") Formwork: 27 mm (1-1/16") Forstner Drill Bit: 56 mm (2-3/16") Hole Saw: 56 mm (2-3/16") Multi-Siding Core Bit: 56 mm (2-3/16") Ship Auger: 27 mm (1-1/16") Single Spur Auger Bit: 27 mm (1-1/16") Wood (Drill Bit): 27 mm (1-1/16") |
| Chuck Capacity | 0.8 - 10 mm (1/32 - 3/8") |
| Dimensions (L X W X H) | 168 x 66 x 217 mm (6-5/8 x 2-5/8 x 8-1/2") |
| Impacts Per Minute (Ipm) | High / Low: 0 - 22,500 / 0 - 6,750 |
| Max Fastening Torque | Hard / Soft: 35 / 21 N·m (310 / 190 in.lbs.) |
| Max Lock Torque | 32 N·m (280 in.lbs.) |
| Net Weight | 1.1 - 1.3 kg (2.4 - 2.8 lbs.) |
| No Load Speed (Rpm) | High / Low: 0 - 1,500 / 0 - 450 |
| Sound Power Level | 93 dB(A) |
| Sound Pressure Level | 82 dB(A) |
| Vibration Level | Hammer Drilling into Concrete: 12.5 m/s² Drilling into Metal: 2.5 m/s² or less |
