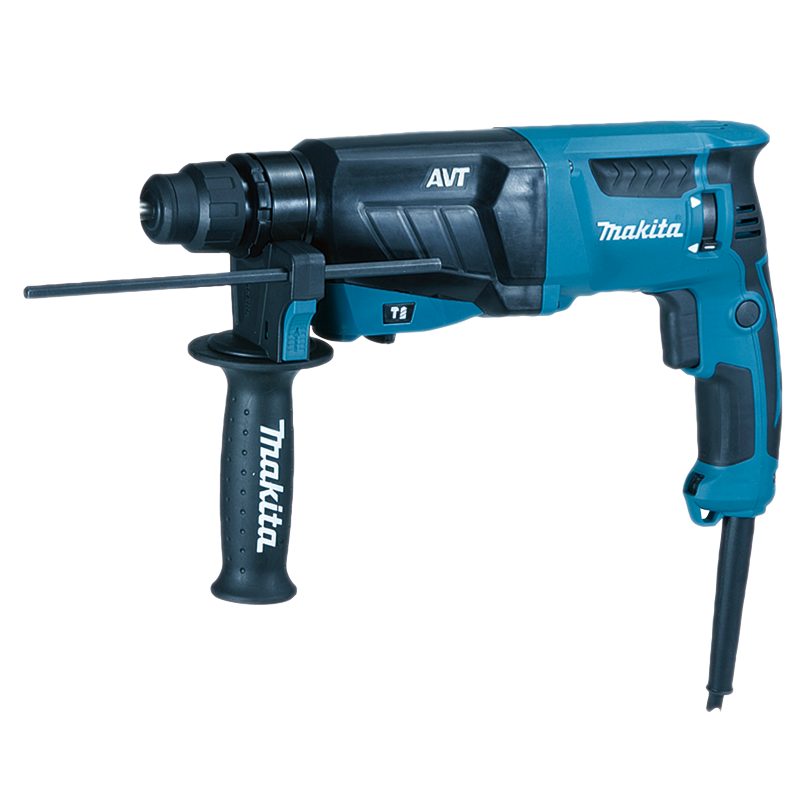

HR2631FX5 COMBINATION HAMMER(SDS-PLUS SHANK/26MM)
HR2631FX5
Features
– 26 mm (1″) 2.4 J AVT Combination Hammer, SDS-PLUS Bits, LED Light AVT (Anti-Vibration Technology) – extremely low vibration achieved by a counterweight mechanism anddamper spring
– Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation
– Soft grip provides more comfort and control
– LED job light with afterglow function illuminates workpiece and drill bit brightly
– Powerful 800 W motor delivers 2.4 J of impact energy to handle the most demanding applications
– Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
– Double insulated
( AC tools )
| Blows Per Minute (Bpm) | 0 - 4,600 |
| Capacity | Concrete: 26 mm (1") Core Bit: 68 mm (2-11/16") Diamond Core Bit (Dry Type): 80 mm (3-1/8") Steel: 13 mm (1/2") Wood: 32 mm (1-1/4") Diamond Core Bit: 80 mm (3-1/8") Masonry: 26 mm (1") Wood (Auger Bit): 32 mm (1-1/4") Wood (Self-Feed Bit): 32 mm (1-1/4") |
| Chuck Capacity | 1.5 - 13 mm (1/16 - 1/2") |
| Continuous Rating Input | 800W |
| Dimensions (L X W X H) | 361 x 77 x 209 mm (14-1/4 x 3 x 8-1/4") |
| Impact Energy | EPTA-Procedure 05/2009: 2.4 J |
| Net Weight | 2.9 - 3.4 kg (6.4 - 7.4 lbs.) |
| Power Supply Cord | 2.5 m (8.2 ft) |
| Sound Power Level | 101 dB(A) |
| Sound Pressure Level | 90 dB(A) |
| Vibration Level | Chiselling Function w/ Side Handle: 9.0 m/s² Hammer Drilling into Concrete: 12.0 m/s² Drilling into Metal: 2.5 m/s² or less |
Grip 36 (154935-8), Depth gauge(331886-4), Bull point 250mm(D-08713), drill chuck set (194041-7), SDS-PLUS bit assortment 5p/set (D-17784).
