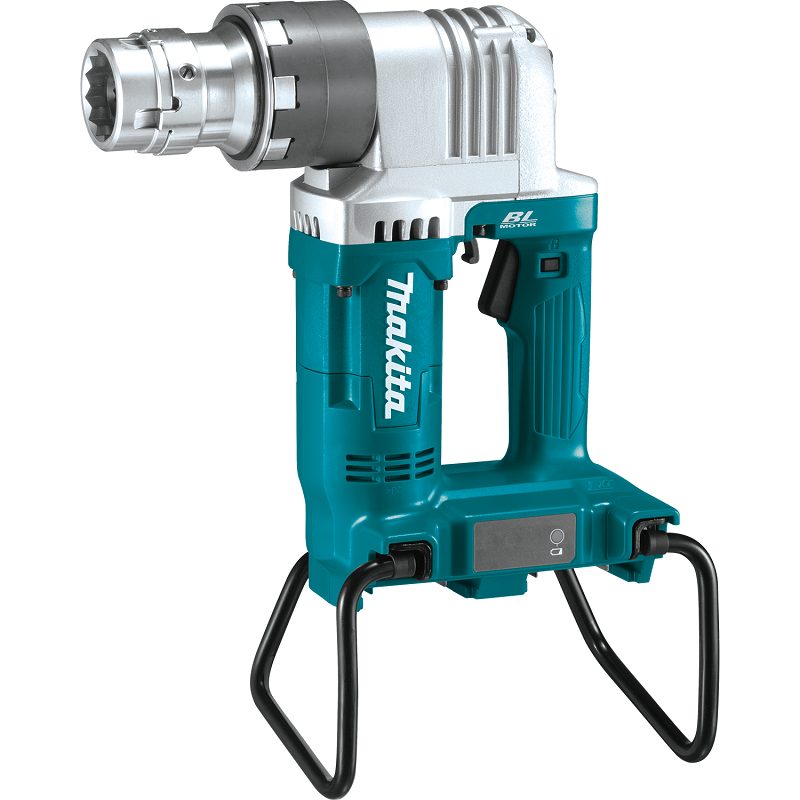

DWT310ZK CORDLESS SHEAR WRENCH(BL)(18Vx2)
DWT310ZK
Features
DWT310 is a Cordless shear wrench powered by 36V (18V x 2 )
LXT Li-Ion batteries and developed based on model 6922NB.
Main features are:
• Nut size: M16 (5/8″), M20 (3/4″), M22 (7/8″)… same with 6922NB
• High operation efficiency
• Work amount: 380 pcs with BL1860B x 2 (M22 Torque shear bolt)
• (Blinking: when the number of bolts you can tighten is less than about 10.)
• Hook for carrying the machine
Note: Not compatible with BL1815
( No Battery , Charger )
| Capacity | Bolt : M16, M20, M22 (5/8", 3/4", 7/8") |
| Dimensions (L X W X H) | 296x130x377 mm (11-5/8"x5-1/8"x14-7/8") |
| Max Fastening Torque | 804 N·m (593 ft.lbs.) |
| Net Weight | 6.5 - 7.1 kg (14.3 - 15.7 lbs.) |
| No Load Speed (Rpm) | 14 |
| Sound Power Level | 94 dB(A) |
| Sound Pressure Level | 83 dB(A) |
| Oscillation angle | field_60d9572b1dfd9 |
Outer sleeve 22-39 complete (153909-6), inner sleeve 22-39 complete (764418-6), outer sleeve 20-37 complete (764361-9), inner sleeve 20-38 complete (764417-8), screwdrivers (783001-0), shoulder belt (161347-8).
