DHS783Z CORDLESS CIRCULAR SAW(185MM/AWS/BL)(18Vx2)
DHS783Z
Features
Model DHS783 is a 190mm cordless circular saw powered by 18V x 2 LXT batteries and developed based on Model DHS781.

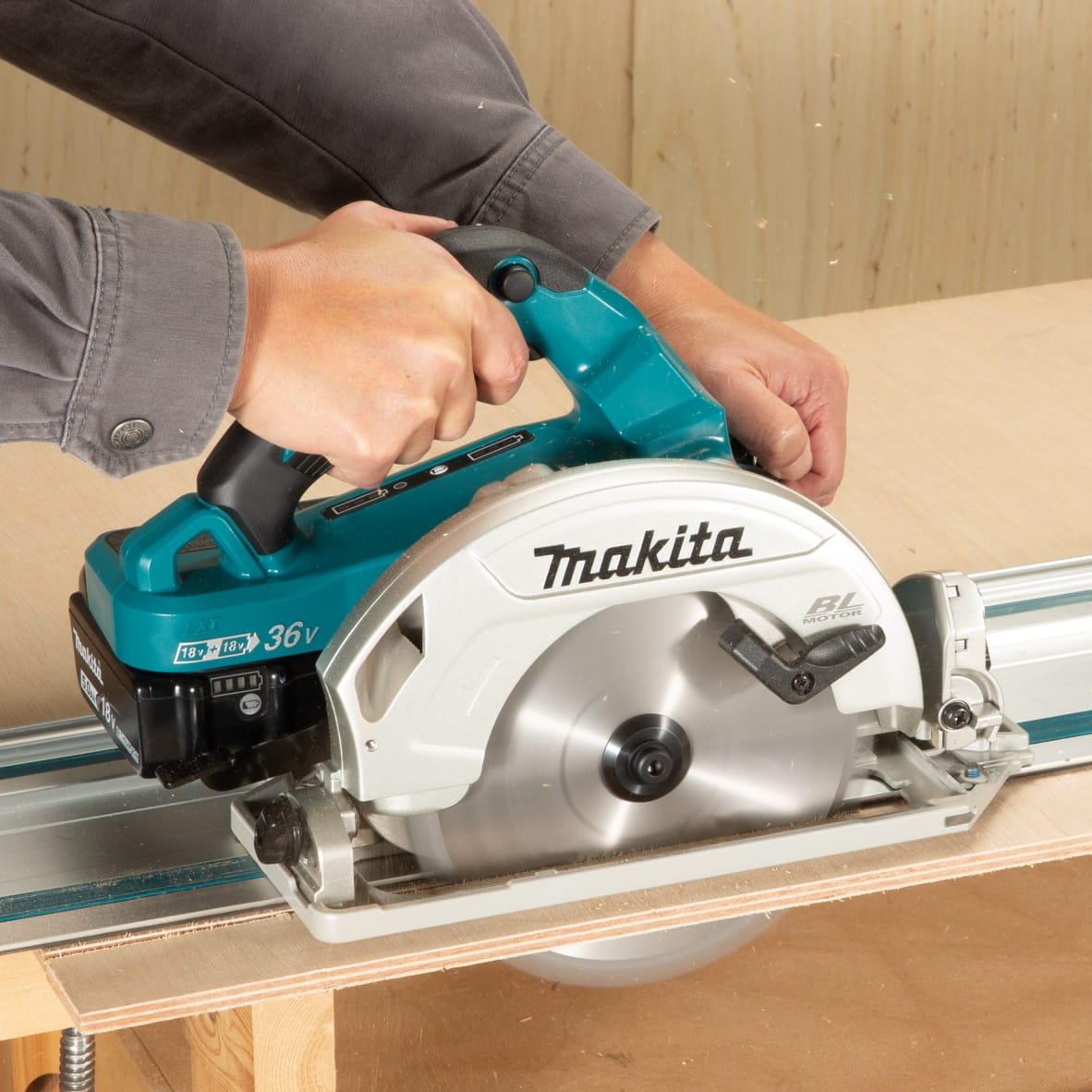

+ Compatible with Guide rail without adapter, providing precision cutting
+ Brushless motor delivers high power similar to corded tool
+ Overload indiction function through ADT lamp
+ Auto-start wireless system
+ ADT: Automatic torque Drive Technology
Note: This product is not compatible with Battery BL1815.
( No battery, charger )
Blade Diameter | 190 / 185 mm (7-1/2" / 7-1/4") |
Dimensions (L X W X H) | 348x210x290 mm (13-3/4"x8-1/4"x11-3/8") |
Max Cutting Capacity | 90°: 62.5 / 60 mm (2-7/16" / 2-3/8") 45°: 44.5 / 43 mm (1-3/4" / 1-11/16") 48°: 42 / 41 mm (1-5/8" / 1-5/8") |
Max Output | 1,800 W |
Net Weight | 4.5 - 5.1 kg (9.9 - 11.3 lbs.) |
No Load Speed (Rpm) | 6,000 |
Sound Power Level | 104 dB(A) |
Sound Pressure Level | 93 dB(A) |
Vibration Level | 2.5 m/s² or less |

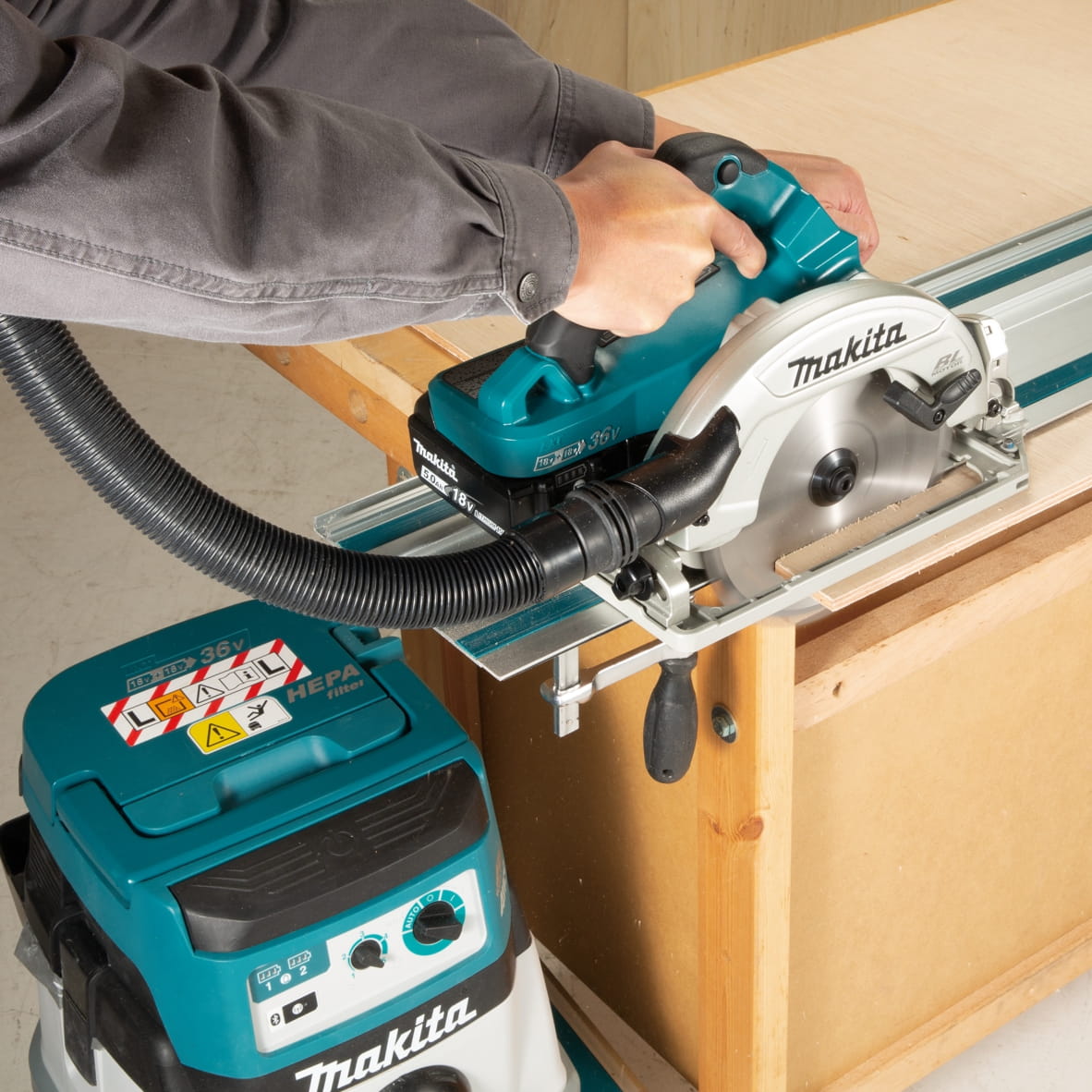

Efficut saw blade (B-62022), hex key (783204-6), bar clamp (164095-8), guide ruler (164095-8), vacuum cleaner set(196520-1)
