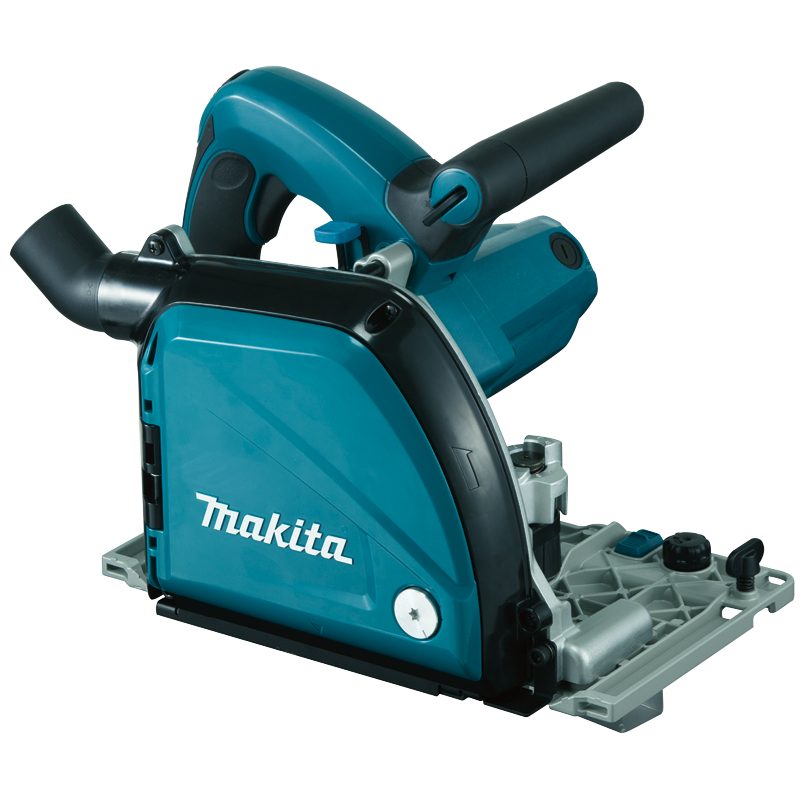

CA5000X ALUMINUM GROOVE CUTTER(118MM)
CA5000X
Features

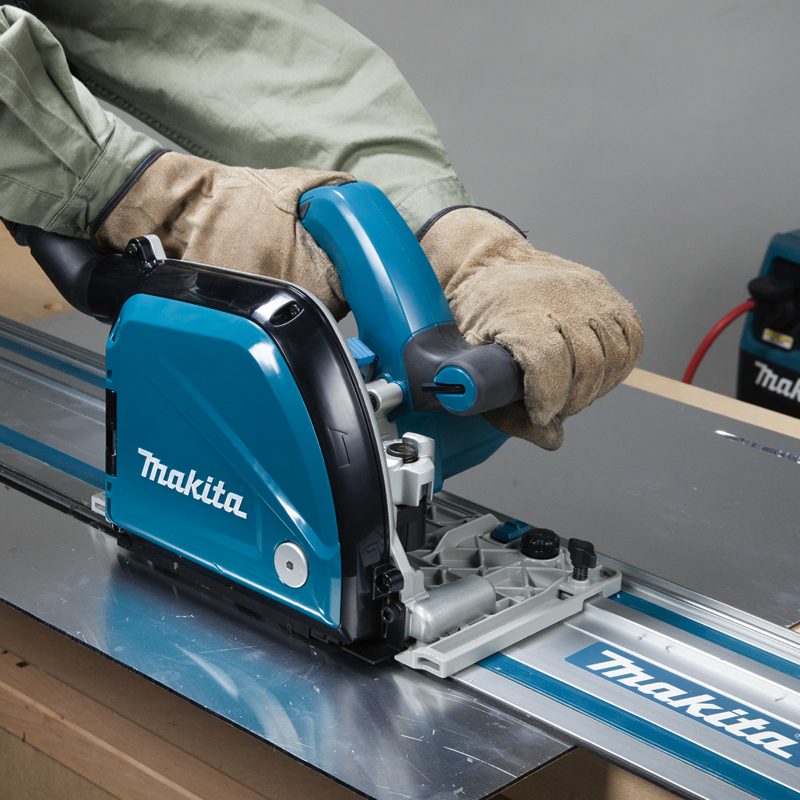

Model CA5000 has been developed for cutting grooves in aluminum composite
materials*1.
Its main features are:
• Cutter blade for 90° V shaped groove as a standard accessory
• Cutter blade for 135° V shaped groove as an option
• User-friendly blade cover design for easy blade change
• Depth adjustment dial

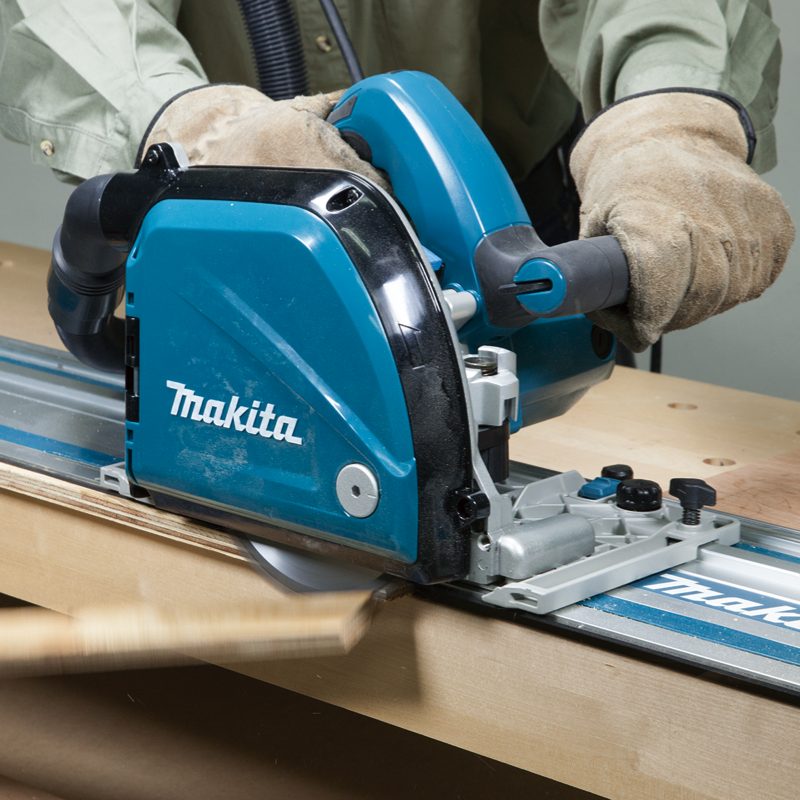

• Also can be used as a plunge cut circular saw by removing Skirt complete
and replacing Cutter blade with ø165mm Saw blade
*1 They have increasingly spread for the architecture, such as exterior housing walls
that are grooved for bending ends at right angle.
( AC tools )
| Continuous Rating Input | 1,300W |
| Dimensions (L X W X H) | 346 x 250 x 250 mm (13-5/8 x 9-7/8 x 9-7/8") |
| Hole Diameter | 20 mm (13/16") |
| Max Cutting Capacity | Cutter blade w/ Guide rail: 11 mm (7/16") - TCT Saw blade w/ Guide rail: 36 mm (1-7/16"); w/o Guide rail: 41 mm (1-5/8") |
| Net Weight | 4.7 kg (10.4 lbs.) |
| No Load Speed (Rpm) | 2,200 - 6,400 |
| Power Supply Cord | 2.5 m (8.2 ft) |
| Wheel Diameter | 118 mm (4-5/8") |
Cutter blade(B-48832), Hex wrench 5 (783022-2);
