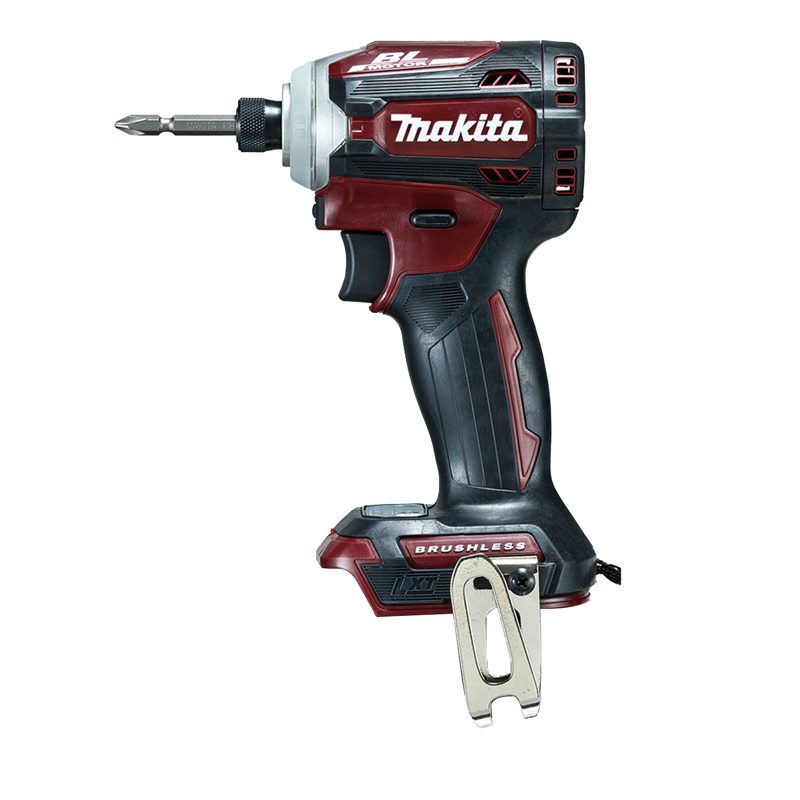

DTD171ZAR CORDLESS IMPACT DRIVER

DTD171ZAR

Features

( No battery, charger )

Capacity Machine Screw : M4 - M8 (5/32" - 5/16") Standard Bolt : M5 - M16 (3/16" - 5/8") High Tensile Bolt : M5 - M14 (3/16" - 9/16") Coarse thread (in length) : 22 - 125 mm (7/8" - 4-7/8")
Dimensions (L X W X H) w/ BL1815N / BL1820B : 116x79x218 mm (4-9/16"x3-1/8"x8-5/8") w/ BL1830B / BL1840B / BL1850B / BL1860B : 116x79x236 mm (4-9/16"x3-1/8"x9-1/4")
Fastening Torque Hard / Med / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.)
Hex Shank 6.35 mm (1/4")
Impacts Per Minute (Ipm) Max / Hard / Med / Soft / Wood / Bolt / T (2) mode : 0 - 3,800 / 3,600 / 2,600 / 1,100 / 3,800 / 3,800 / 2,600
Max Fastening Torque 180 N·m
Net Weight 1.2 - 1.6 kg
No Load Speed (Rpm) Max / Hard / Med / Soft / Wood / Bolt / T (1) / T (2) mode : 0 - 3,600 / 3,200 / 2,100 / 1,100 / 1,800 / 3,600 / 2,900 / 3,600
Sound Power Level 108 dB(A)
Sound Pressure Level 97 dB(A)
Vibration Level 13.5 m/s²
(+) Truss head screw M4X12 (266622-8), hook (346317-0)
