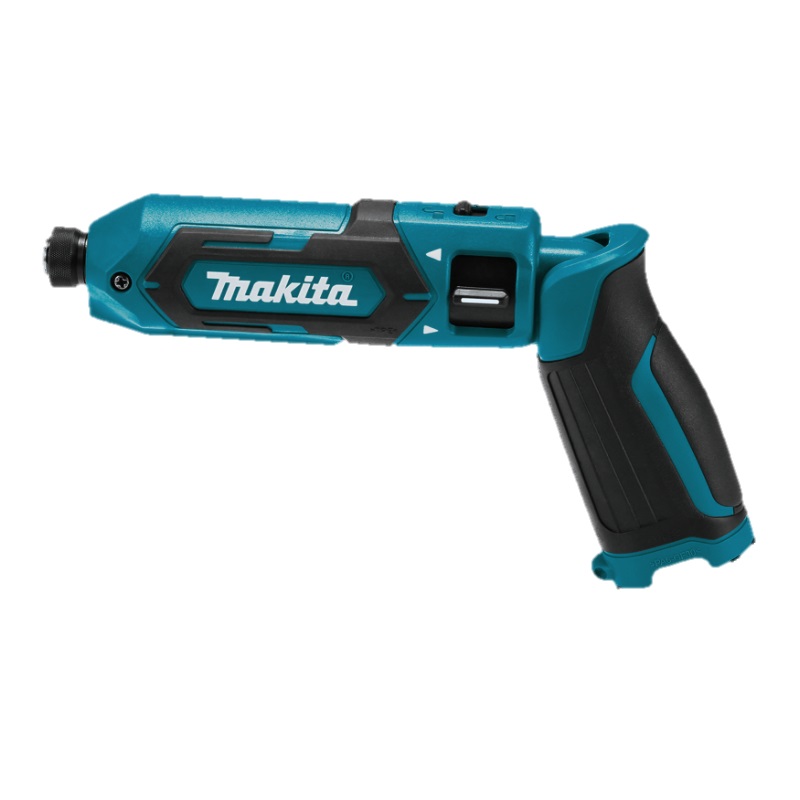

TD022DZ DRIVER DRILL (7.2V)
TD022DZ
Features
Model TD022D is a Cordless Impact Driver and has been developed based on the current model TD021D.
Its main features are:
· Compact and lightweight for easy handling
· New design
· 7.2V Li-ion battery of stick type as a power source
· Easily converted from straight to pistol-type impact driver
· Max tightening torque: 25 N·m (TD021D: 22 N·m)
( No battery, charger )
| Capacity | Machine Screw: M3 - M8 (1/8 - 5/1 6") Standard Bolt: M3 - M8 (1/8 - 5/16") High Strength Bolt: M3 - M6 (1/8 - 1/ 4") Coarse thread (in length): 22 - 45 m m (7/8 - 1-3/4") Steel: 3.5 mm (1/8") Wood (Auger Bit): 6 mm (1/4") |
| Dimensions (L X W X H) | Pistol Style: 227 x 42 x 142 mm (8-1 5/16 x 1-5/8 x 5-5/8") . Straight Style: 282 x 42 x 52 mm (11 -1/8 x 1-5/8 x 2-1/16") |
| Dimensions (L X W) | Straight Style: 282 x 42 mm (11-1/8x 1-5/8") |
| Hex Shank | 6.35 mm (1/4") |
| Impacts Per Minute (Ipm) | 0 - 3,000 |
| Max Fastening Torque | 25 N·m (220 in.lbs.) |
| Net Weight | 0.55 - 0.56 kg (1.2 lbs.) |
| No Load Speed (Rpm) | 0 - 2,450 |
| Sound Power Level | 96 dB(A) |
| Sound Pressure Level | 85 dB(A) |
| Vibration Level | 25 N·m (220 in.lbs.) |
Bit (+)(+)(784202-3), handle cover (168435-2)
