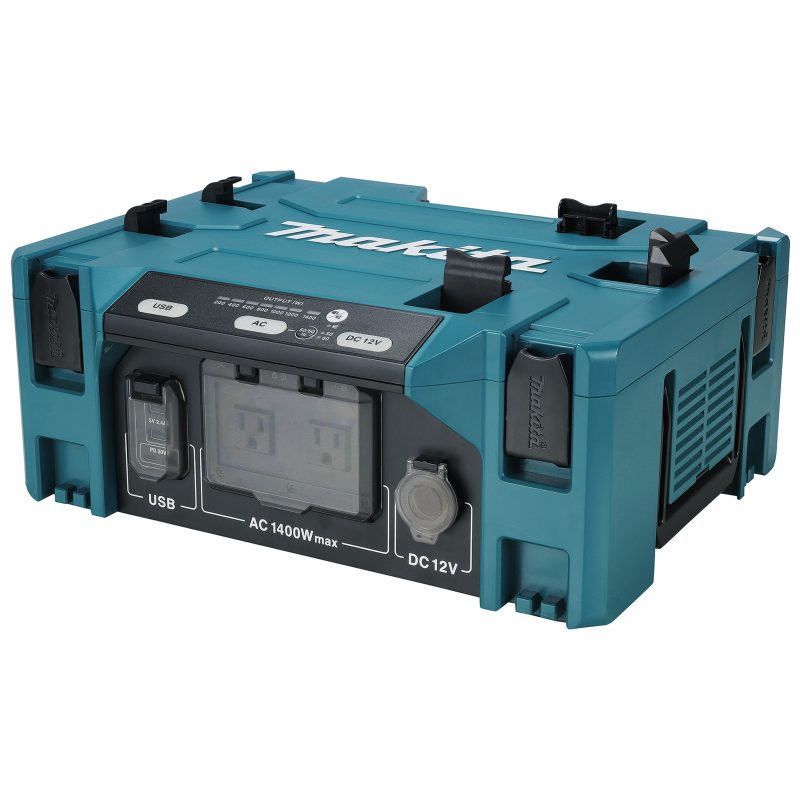

BAC01 POWER CONVERTER
Features
Model BAC01 is a power inverter powered by Makita portable power pack.
The device, which turns DC power into AC power, is optimal for a wide range of
applications such as:
• Battery charging or use of corded tools in outdoor job sites where AC outlet is not available
• Emergency power source
• Outdoor leisure activities
The main features and benefits are:
• Multiple outputs including: 2 AC outlets, 2 Type-A USB output ports,
2 Type-C USB output ports, 1(one) DC12V cigar socket
• 7-stage output indication by 7 LED lamps
• The 7th LED lamp, which indicates 1,400W, starts blinking when:
∙ AC power output alone reaches 1,450W(VA).
∙ Total power output reaches 1,500W(VA).
(It keeps on blinking continuously for 20 seconds, then the power inverter stops due to overload.)
• Warning buzzer beeps* when:
∙ Protection function is activated to minimize the damage to the power inverter due to high temperature or overload.
∙ The remaining battery capacity becomes low.
*This function can be disabled.
• Can be connected firmly with accessories of MAKPAC system, allowing for easy transportation on MAKPAC trolley or cart.
Ac Output | 220V |
Dimensions (L X W X H) | 395 x 345 x 163 mm (15-1/2 x 13-5/8 x 6-3/8") |
Energy Capacity | w/ PDC1200: 1,206 Wh |
Max Output | 2800W |
Net Weight | 7.3 - 16.2 kg (16.1 - 35.7 lbs.) |
