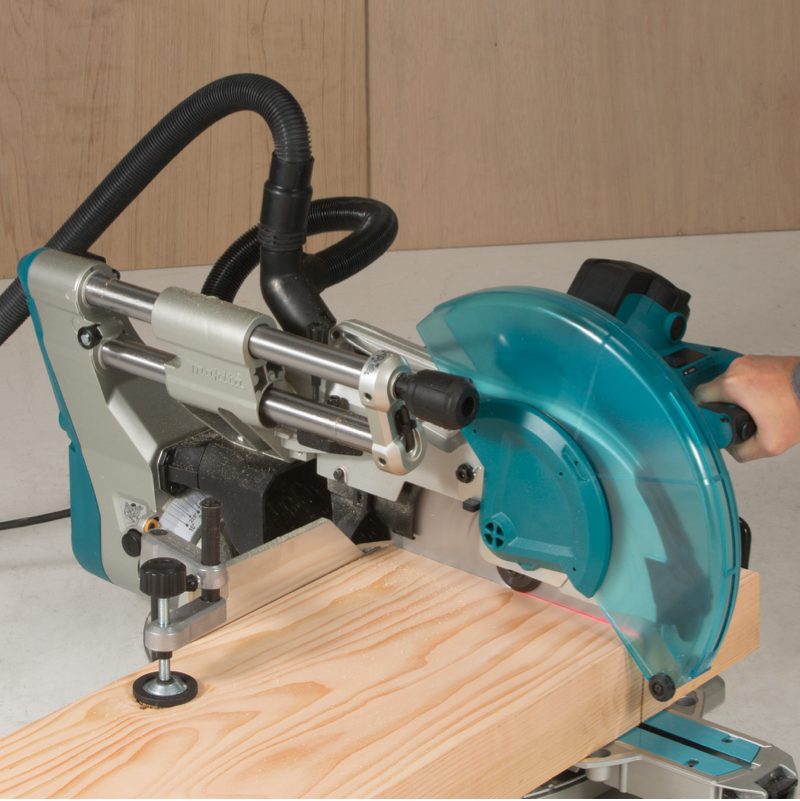

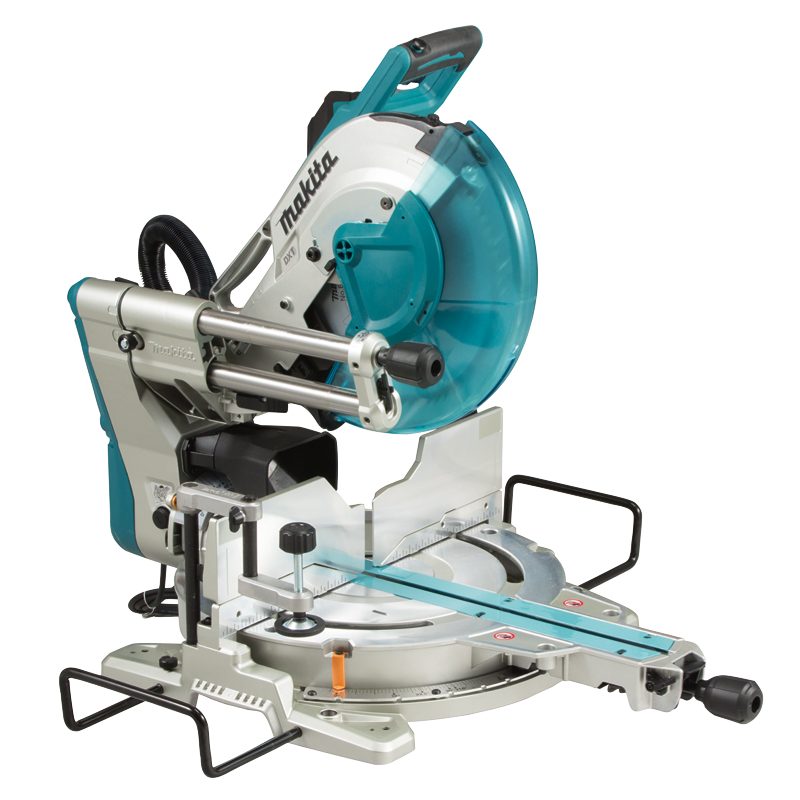

LS1219L SLIDE COMPOUND SAW (305MM)
Models LS1219/ LS1219L have been developed as successor models of LS1216/ LS1216L.
Their main features are:
+ Sliding on pipe structure for space saving.
+ Excellent dust collection by a new dust collecting port.
+ Large turn base.
+ High precision cutting by the integration of Guide fence and Lower fences.
+ Front grip for easy Bevel angle adjustment.
|Bevel Angle||48° L / 48° R|
|Blade Diameter||305mm (12")|
|Capacity At 45°||107mm x 255 mm (4-1/4" x 10")|
|Capacity At 90°||107mm x 363 mm (4-1/4" x 14-1/4")|
|Continuous Rating Input||1,800W|
|Dimensions (L X W X H)||898mm x 664mm x 725mm (35-1/4" x 26-3/8" x 28-1/2")|
|Miter Angle||60° L / 60° R|
|Net Weight||29.5kg (65.0 lbs)|
|No Load Speed (Rpm)||3,200|
|Power Supply Cord||2.5m (8.2 ft.)|
|Sound Power Level||100dB(A)|
|Sound Pressure Level||91dB(A)|
|Vibration Level||2.5 m/s² or less|
