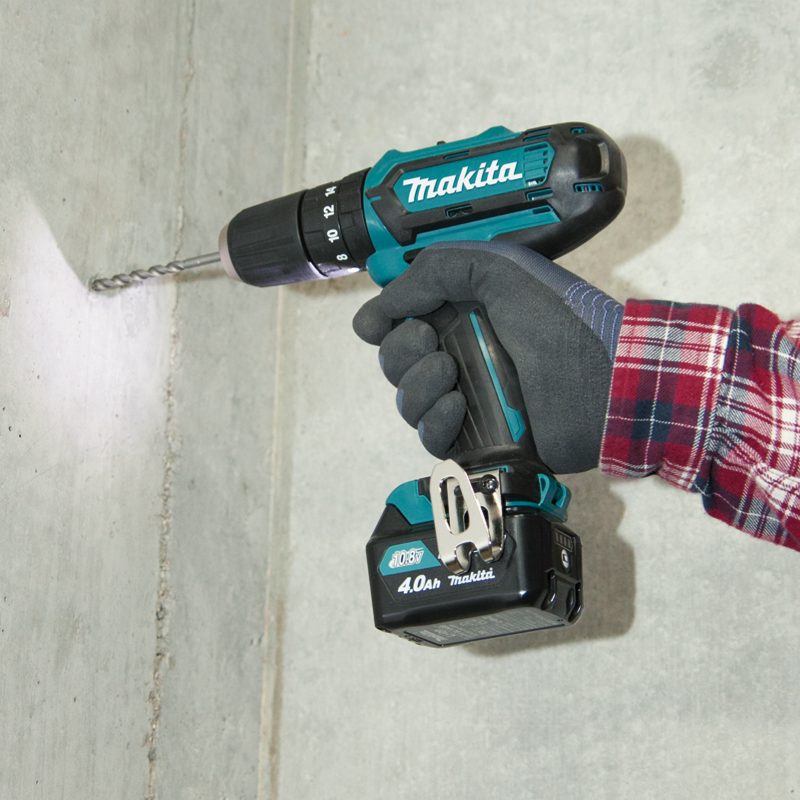

HP331DWAX8 CORDLESS HAMMER DRIVER DRILL(12V MAX)
Features
We are going to launch a new 10.8V (12V max*1) platform. The new platform
has been developed based on the current one, and features newly developed
slide Li-ion battery instead of stick one; use of the new battery provides stable contact
between battery and tool and the same ergonomic handle as LXT series models
to obtain more satisfaction from professional users.
Model HP331D is one of the first new 10.8V (12V max*1) platform models
to launch.
The main features and benefits are:
• Increased motor power for higher application speed and max tightening torque
• Best possible ergonomic handle for drilling/driving applications
( 1 charger, 1 battery 12V 2.0Ah )
| Capacity | Adjustable Circle: 42 mm (1-5/8") Flat Bit: 21 mm (13/16") Formwork: 21 mm (13/16") Forstner Drill Bit: 42 mm (1-5/8") Hole Saw: 42 mm (1-5/8") Multi-Siding Core Bit: 42 mm (1-5/8") Ship Auger: 21 mm (13/16") Single Spur Auger Bit: 21 mm (13/16") Wood (Drill Bit): 21 mm (13/16") |
| Chuck Capacity | 0.8 - 10 mm (1/32 - 3/8") |
| Dimensions (L X W X H) | 201 x 66 x 209 mm (7-7/8 x 2-5/8 x 8-1/4") |
| Impacts Per Minute (Ipm) | High / Low: 0 - 25,500 / 0 - 6,750 |
| Max Fastening Torque | Hard / Soft: 30 / 14 N·m (270 / 130 in.lbs.) |
| Max Lock Torque | 28 N·m (250 in.lbs.) |
| Net Weight | 1.1 - 1.3 kg (2.5 - 2.9 lbs.) |
| No Load Speed (Rpm) | High / Low: 0 - 1,700 / 0 - 450 |
| Sound Power Level | 92 dB(A) |
| Sound Pressure Level | 81 dB(A) |
| Vibration Level | Impact Drilling into Concrete: 8 m/s² Drilling into Metal: 2.5 m/s² |
