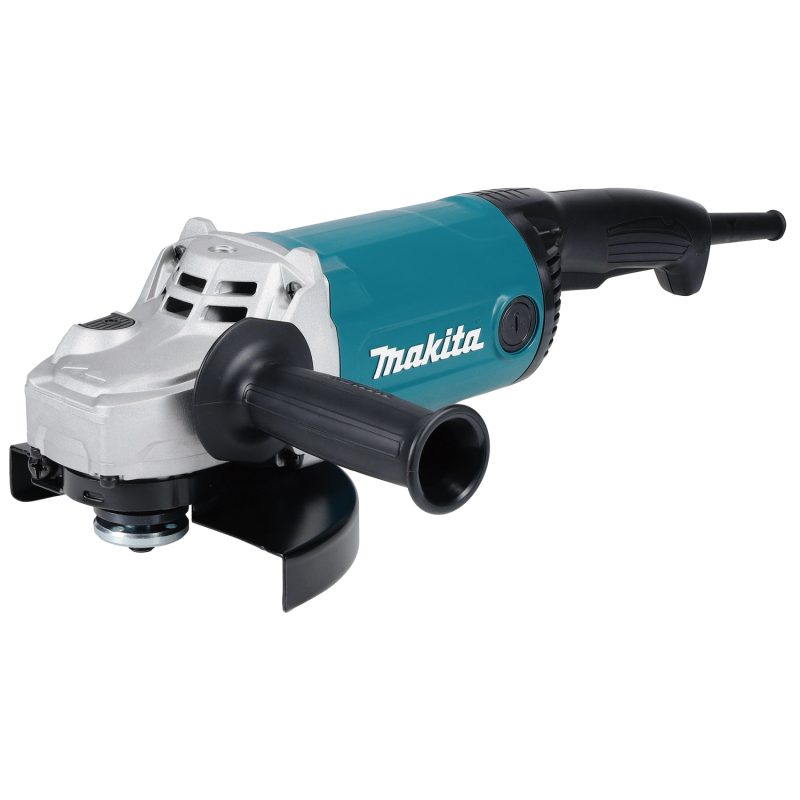

GA7090 ANGLE GRINDER(180MM/2200W/TRIGGER SWITCH)
GA7090
Features
- 180 mm (7″) 2,200 W Angle Grinder, Large Trigger Switch
- This model, targeting metal grinding operations, has achieved similar durability as GA7020, while improving cost competitiveness and realizing a lightweight and compact design
- Cost-competitiveness / Compact and lightweight
This model is a lightweight and compact 2,200W angle grinder with an N94 motor and has achieved weight reduction in the gear housing, etc. - Excellent maneuverability
The side grip can be attached closer to the center of the wheel rotation to reduce the load on the user’s hand for improved maneuverability in grinding operation - Reduced core abrasion
(Stator) core abrasion is reduced by adding a water absorption process to the nylon motor housing after molding to reduce dimensional changes of the housing in humid conditions - Improved leakage resistance
Switch cover and Sponge are added to improve leakage current resistance between switch terminals - Serial number label protection
The serial number label is placed in a position hidden by the wheel cover to protect the label - Three-position adjustable side grip for operator convenience
- Double insulation
( AC tools )
| Continuous Rating Input | 2,200 W |
| Cord Length | 2.0 m (6.6 ft) |
| Cutting Depth | 69 mm (2-3/4") |
| Dimensions (L X W X H) | 438 x 200 x 144 mm (17-1/4 x 7-7/8 x 5-5/8") |
| Hole Diameter | 22.23 mm (7/8") |
| Net Weight | 5.1 - 7.3 kg (11.2 - 16.1 lbs.) |
| No Load Speed (Rpm) | 8,500 minˉ¹ |
| Sound Power Level | 100 dB(A) |
| Sound Pressure Level | 92 dB(A) |
| Wheel Diameter | 180 mm (7") |
